How Much Space Do I Need for a Golf Simulator?

POSTED

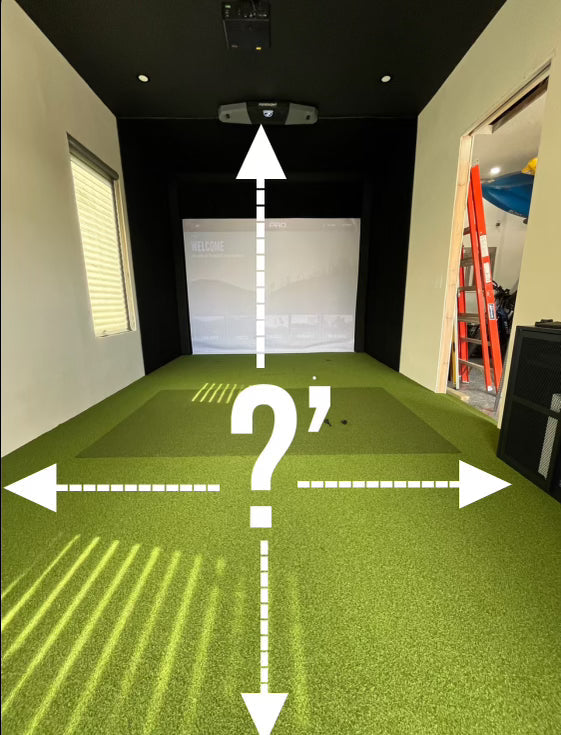

Interior view of a Golf2U indoor golf simulator installation with white arrows and a question mark overlay illustrating the required height, width, and depth dimensions.

How Much Space Do I Need for a Golf Simulator? The Ultimate Dimension Guide

So, you’re ready to pull the trigger on a home golf simulator. You’ve picked out the launch monitor and the software, but now comes the most critical question: Will it actually fit?

At Golf2U, the #1 reason for "buyer’s remorse" isn't the technology, it’s the space. Installing a simulator in a room that’s too small doesn't just feel cramped; it can actually be dangerous for your walls (and your swing).

Here is the definitive guide to golf simulator room dimensions to ensure your setup is safe, functional, and "driver-friendly."





1. Ceiling Height: The "Make or Break" Factor

Ceiling height is the most important dimension. If your ceiling is too low, you’ll subconsciously "shorten" your swing to avoid hitting the roof, which ruins your mechanics.

  • Minimum Height: 8.5 feet (2.74m).

  • Recommended Height: 10 feet (3.05m) or higher.

  • The "Driver Test": Slowly take a full backswing and follow-through with your driver. If you feel even a hint of anxiety about the ceiling, you need more height or a different location.

Pro Tip: Don't forget to account for the thickness of your golf hitting mat. A premium 2-inch mat will eat into your vertical clearance!

2. Room Width: Centered vs. Offset

The width of your room determines whether you can swing from the center of the screen or if you need to "offset" your hitting position to one side.

  • Minimum Width: 12 feet.

  • Recommended Width: 12 to 15 feet.

  • Why it matters: At 12 feet, you will likely be hitting from an offset position (closer to the back wall) to allow room for your backswing. If you want a centered aim point, 15 feet is the "gold standard," especially if you plan on hosting both left-handed and right-handed golfers.

3. Room Depth: Protecting Your Screen and Your Launch Monitor

Depth is crucial for two reasons: safety and data accuracy.

  • Minimum Depth: 15 feet.

  • Recommended Depth: 18+ feet.

How the depth breaks down:

  1. Buffer Space: Leave 12–15 inches between the impact screen and the wall to prevent the ball from hitting the drywall.

  2. Tee-to-Screen Distance: Ideally 8–10 feet. This provides the best "immersion" and prevents excessive ball bounce-back.

  3. Backswing Clearance: You need 6–8 feet behind the golfer to swing comfortably without hitting the back wall or equipment.





Dimensional Summary Table

Dimension

Minimum (Cramped)

Recommended (Comfortable)

Height

8.5'

10' +

Width

12'

15'

Depth

15'

20' +





Radar vs. Camera: How Tech Impacts Space

The type of launch monitor you choose will dictate your space needs.

  • Camera-Based (Photometric): Systems like the SkyTrak+ or Bushnell Launch Pro sit to the side of the ball. These are excellent for smaller rooms because they don't require extra depth behind the golfer.

  • Radar-Based: Systems like the TrackMan or Garmin Approach R10 sit behind the golfer. These require an additional 6–8 feet of "flight path" to read the ball correctly, meaning you'll need a much deeper room.

Final Thoughts: Measure Twice, Swing Once

Before you buy, grab a friend and a roll of painter's tape. Mark out your hitting mat and screen location on the floor, and take a few practice swings with your longest club. If it feels tight, it is tight.

Are you unsure if your garage, basement, or spare room will work? Golf2U specializes in custom golf simulator installations. We can help you design a layout that maximizes your available square footage while keeping your swing and your drywall perfectly safe.
