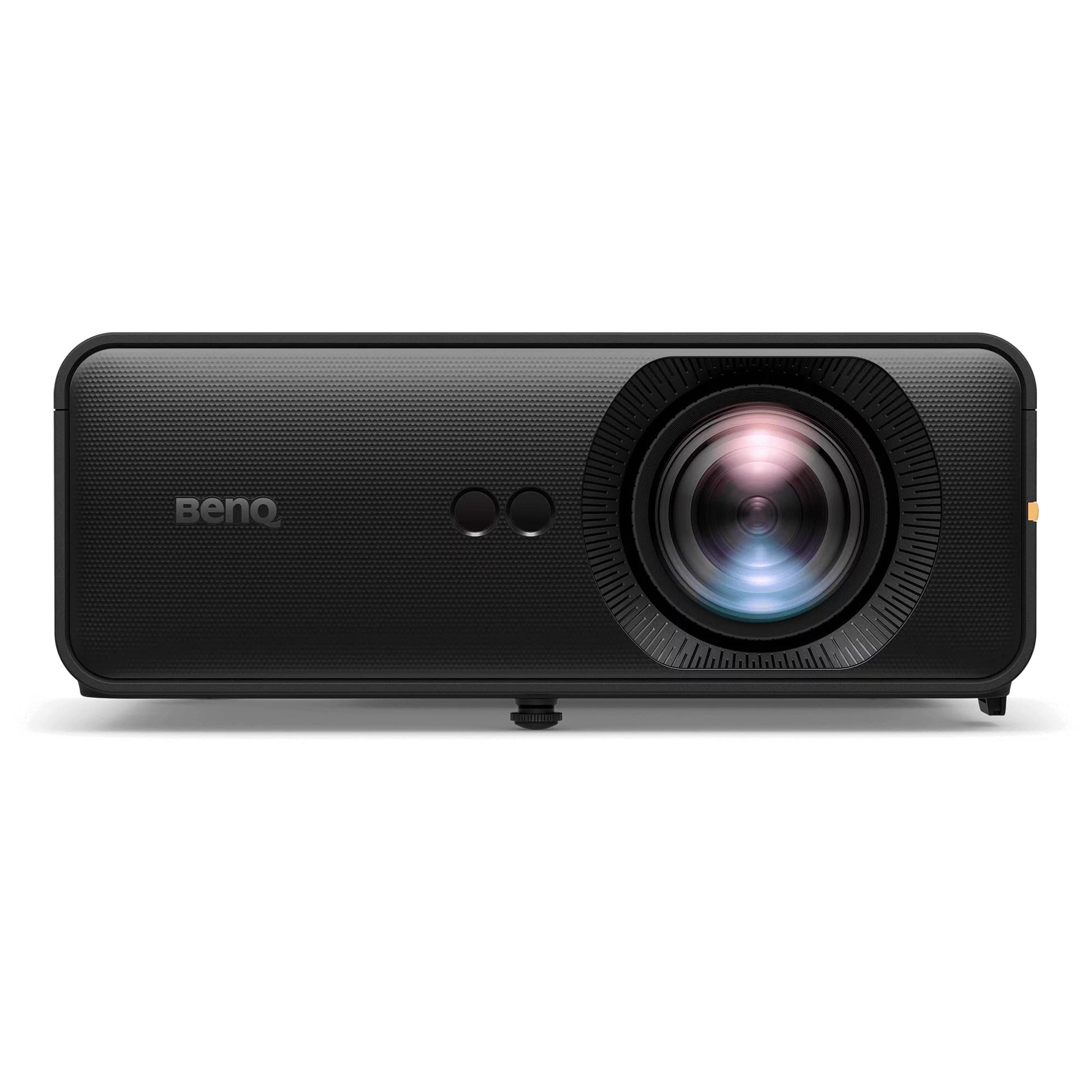

BenQ AH500ST 4000-Lumen Short Throw 1080P Laser Golf Simulator Projector

Automatic Screen Adjustment

The AH500ST automatically detects and adjusts to your impact screen's aspect ratio, supporting 16:9, 16:10, 4:3, and 1:1 formats for optimal resolution.

Quick Focus

Use the remote control's Focus button for precise image adjustments, ensuring sharp visuals.

Wireless Projection Ready

With an optional dongle, the AH500ST supports wireless projection from any device, eliminating the need for cables.

Safe Short-Throw Design

The 0.499 throw ratio allows safe placement behind the hitter, reducing collision risks and eliminating shadows.

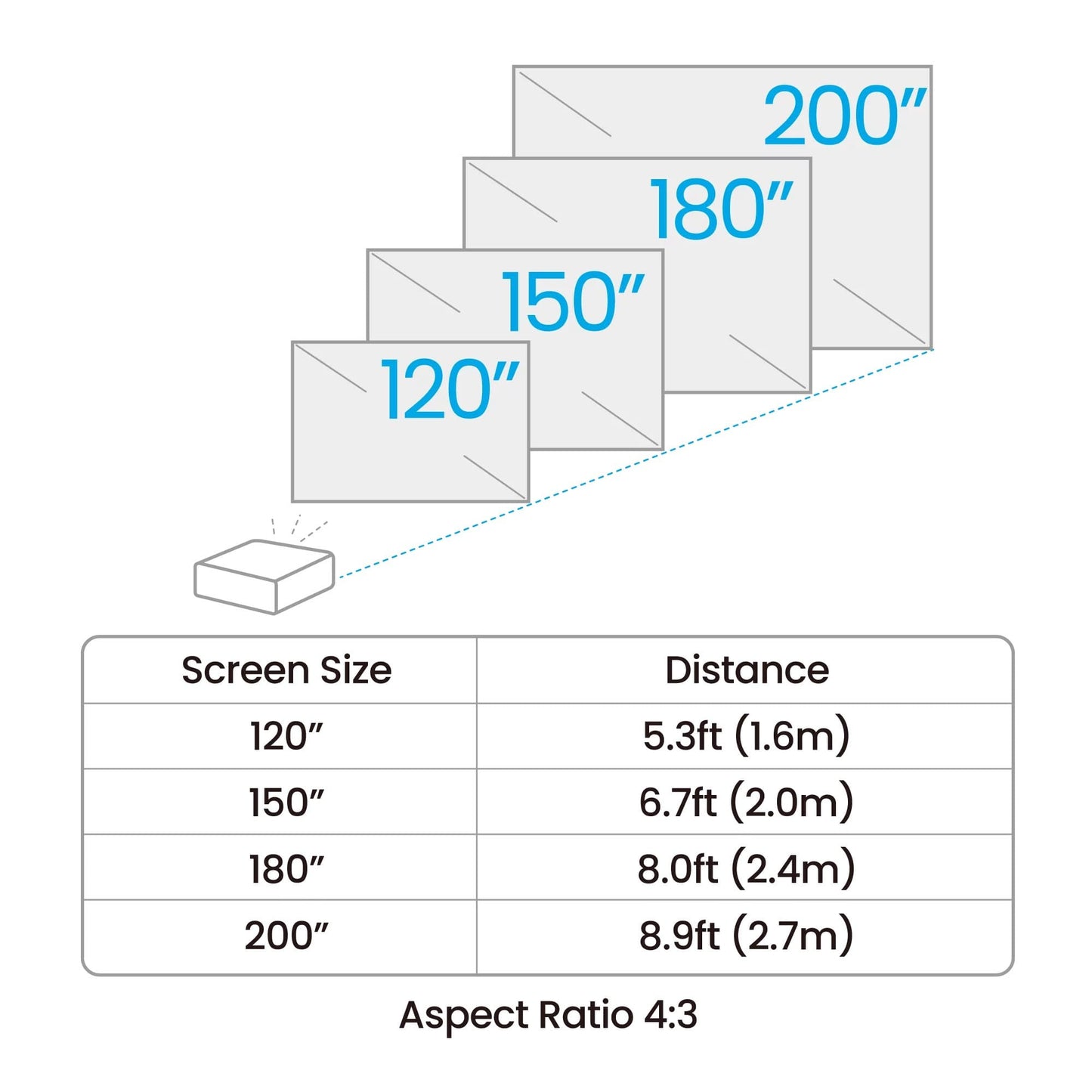

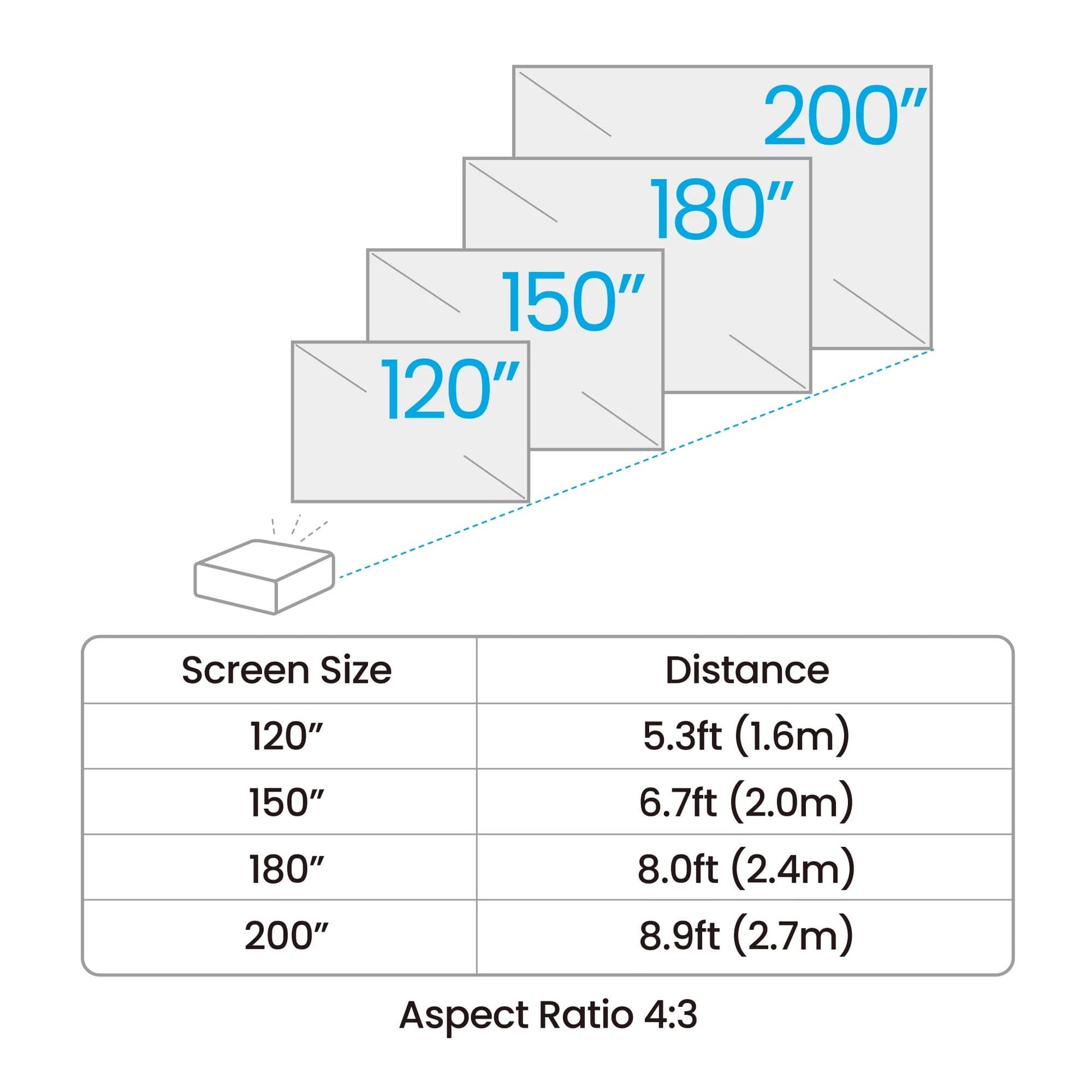

Up to 200-Inch Display

Features a professional-grade motorized, allowing easy screen size adjustments without reinstalling.

Vibrant Visuals

With 4000 lumens of brightness, 83% Rec. 709 coverage, and high contrast, the AH500ST delivers stunning visuals in any lighting condition.

True-to-Life Golf Colors

The exclusive Golf Mode ensures authentic colors tailored for various golf course environments, enhancing the realism of your simulation.

Durable and Reliable

The IP5X dustproof sealed engine operates in temperatures ranging from 32-104°F, reducing the need for regular filter replacements.

Long-Lasting Laser Technology

Offers up to 20,000 hours of light source life, minimizing maintenance and replacement costs.

Included with Your Purchase:

• BenQ AH500ST

• Remote Control With Batteries
• Power Cord

• Quick Start Guide
• Warranty Card

• Lens Cover

All Specifications

Display:

• Brightness (ANSI lumens): 4000
• Resolution: 1080P (1920×1080)
• Native Aspect Ratio: 16:9
• Selectable Aspect Ratios: 16:9, 16:10, 4:3, 1:1
• Contrast Ratio (FOFO): 3,000,000:1
• Display Color: 30-bit (1.07 billion colors)
• Light Source: Laser
• Light Source Life: Normal: 20,000 hrs, ECO: 38,000 hrs

Optical:

• Throw Ratio: 0.499
• Zoom Ratio: Fixed
• Lens: F#=2.8, f=7.46mm
• Projection Offset (Full-Height): 112%
• Keystone Adjustment: 2D, Vertical ± 30 degrees; Horizontal ± 30 degrees

Picture:

• Rec. 709 Coverage: 83%
• Picture Modes: 3D, Cinema, Game, Golf, HDR10, HLG, sRGB, User 1, User 2

Compatibility:

• Input Lag (1080P 60Hz): 16.7 ms
• Input Lag (1080P 120Hz): 8.3 ms
• Resolution Support: VGA (640 x 480) to 4K UHD (3840 x 2160)
• Horizontal Frequency: 15K~102KHz
• Vertical Scan Rate: 23~120Hz

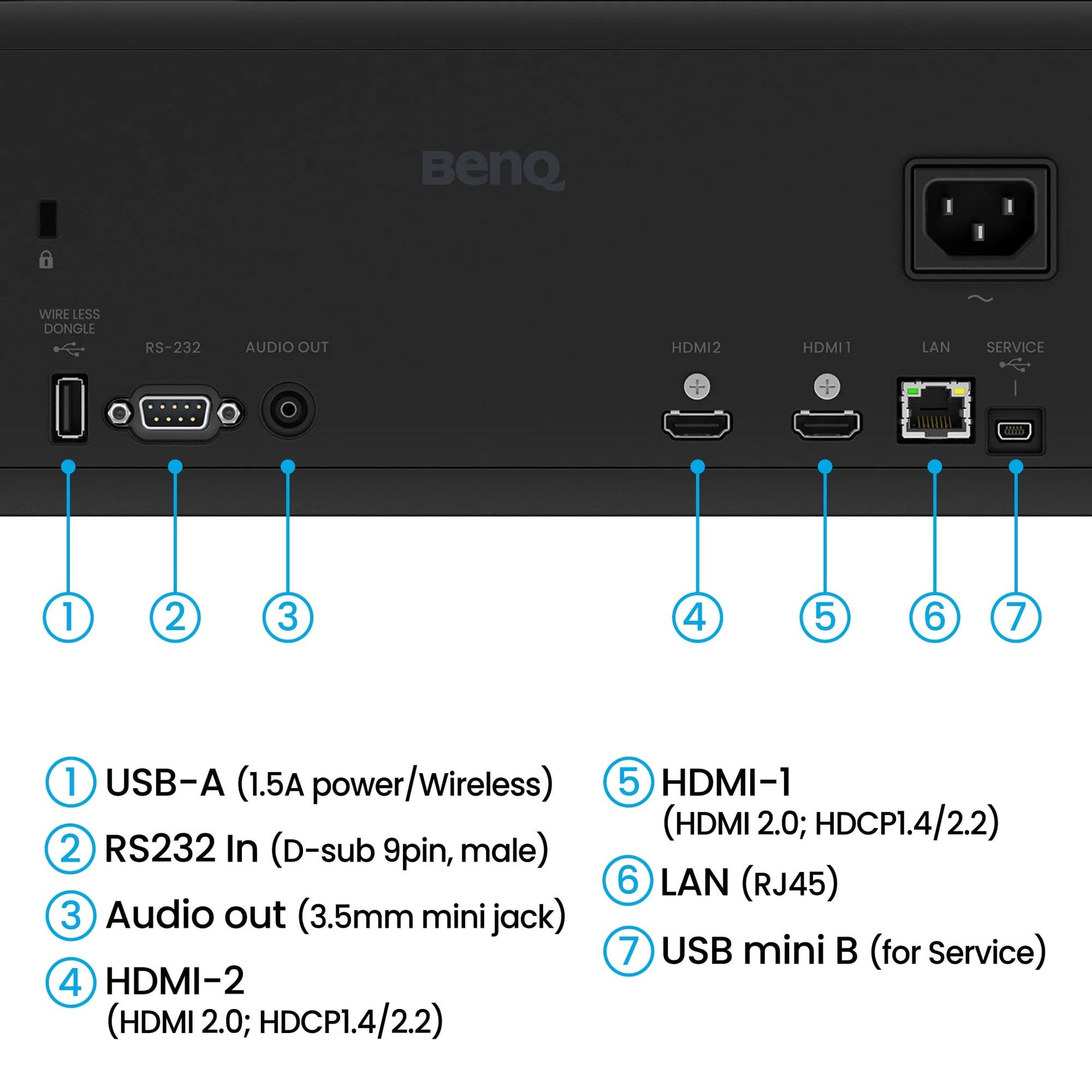

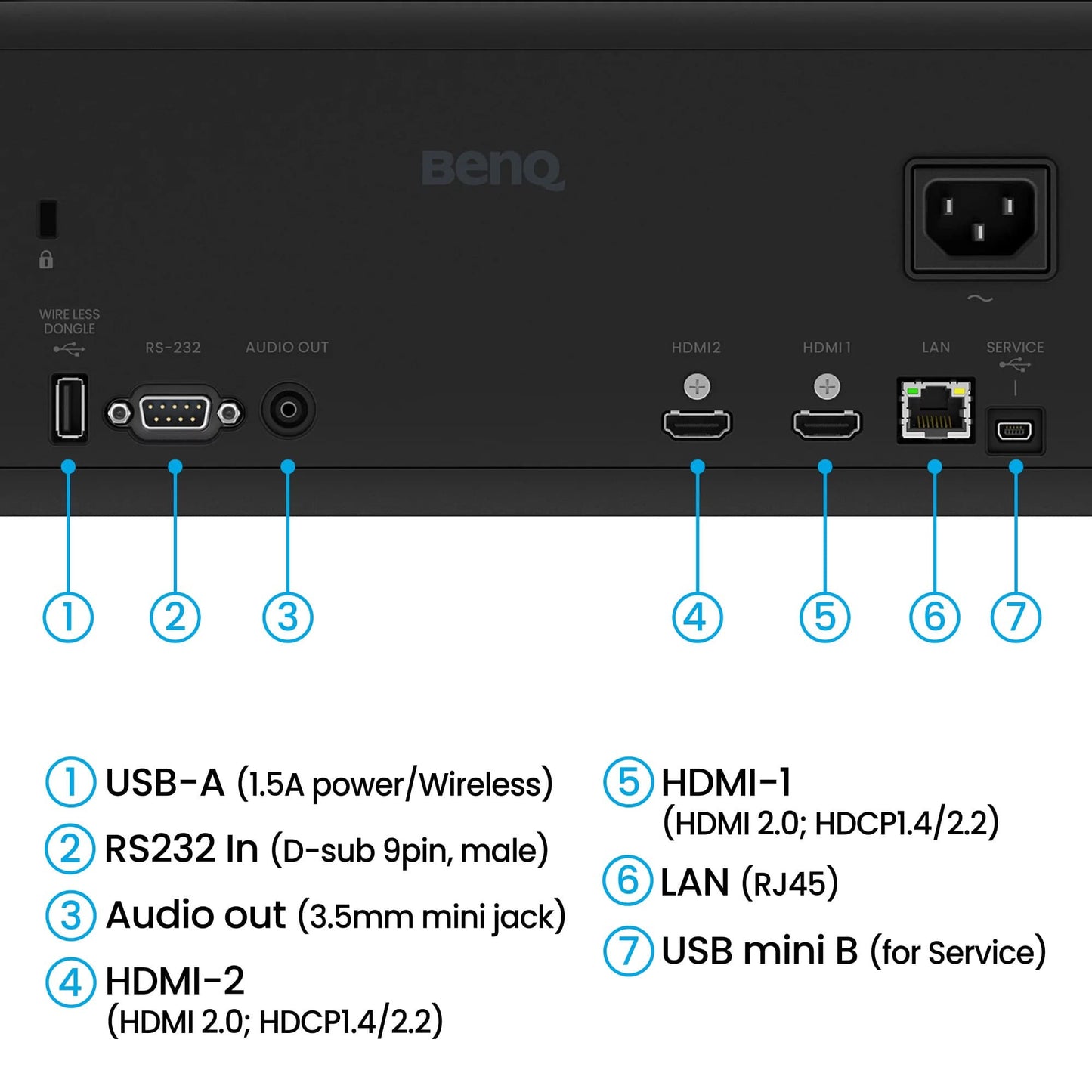

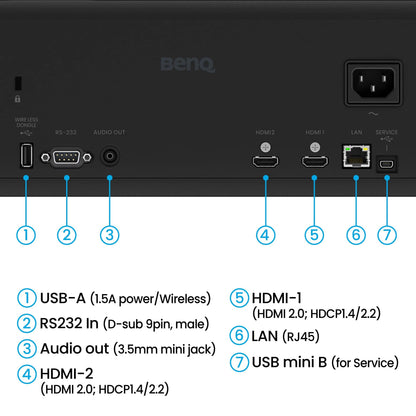

I/O Interface:

• HDMI In: HDMI-1 (2.0a/HDCP2.2), HDMI-2 (2.0a/HDCP2.2)
• LAN (RJ45): (x1)
• USB Type A: (x1), USB Type A-4 (2.0/Wireless Dongle)
• USB Type Mini B: (x1), USB Type Mini B-1 (service)
• RS232 In (DB-9pin): (x1)

Audio:

• Speaker: (x1), 10W
• Audio Out (3.5mm Mini Jack): (x1)

Environment:

• Operating Temperature: 0~40℃
• Power Supply: AC 100 to 240 V, 50/60 Hz
• Typical Power Consumption (110V): 250W@110Vac
• Stand-by Power Consumption: <0.5W
• Network Stand-by Power Consumption: <2W
• Acoustic Noise (Typ./Eco): 35/32 dB

Accessories:

• Wireless USB Dongle: 5201BS (Optional)
• Remote Control with Battery: RCE018
• Power Cord (by region): (x1), 3.0M
• Quick Start Guide: (x1)
• Warranty Card (by region): Yes
• Lens Cover: Yes

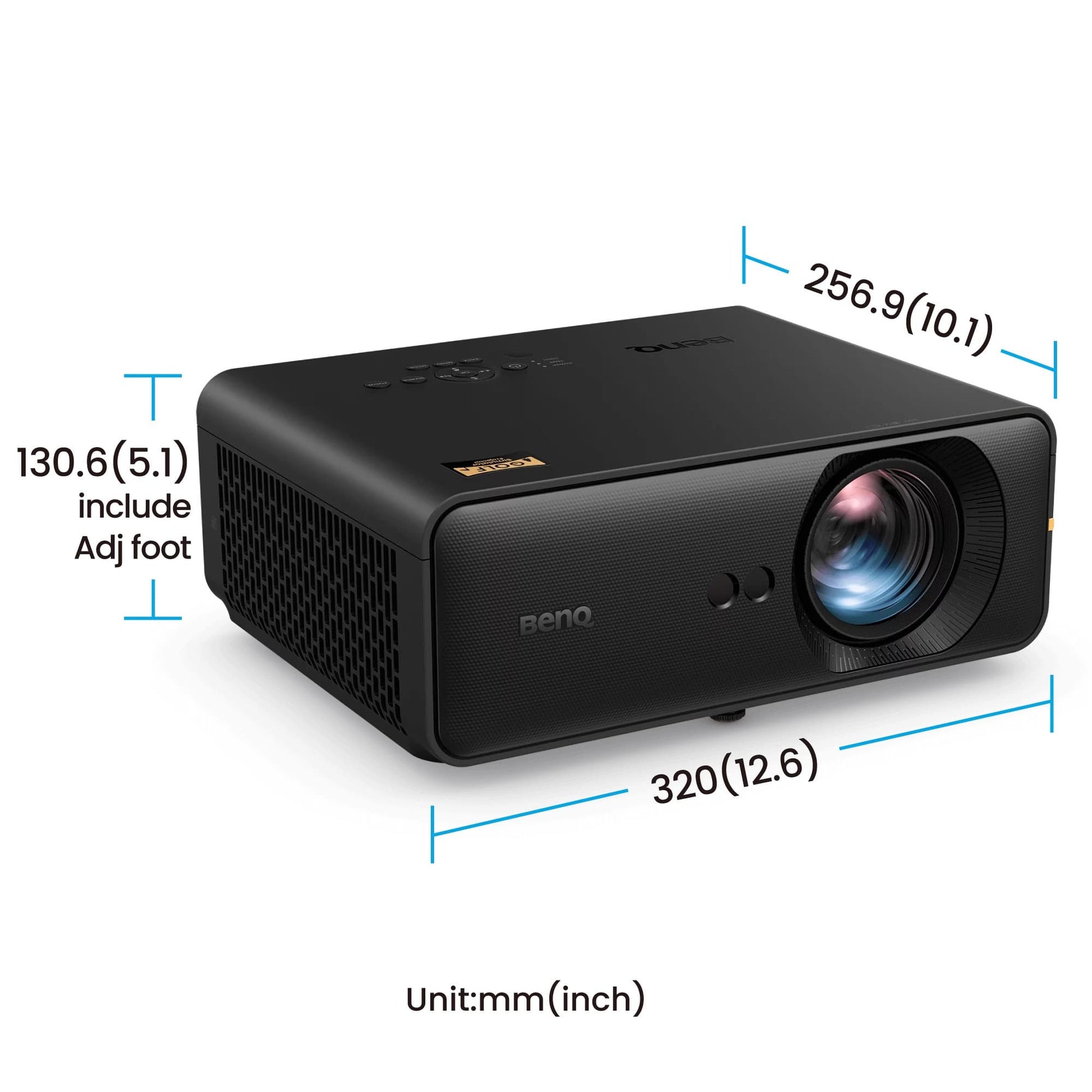

Dimension & Weight:

• Metric Dimensions: 320.0W x 130.6H x 255D mm
• Imperial Dimensions: 12.6"W x 5.1"H x 10.0"D
• Metric Net Weight: 5.1 kg
• Imperial Net Weight: 11.2 lbs

Projection System:

• Projection System: DLP
