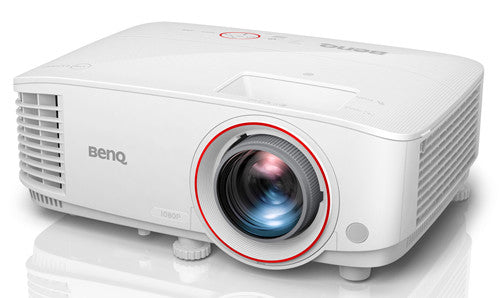

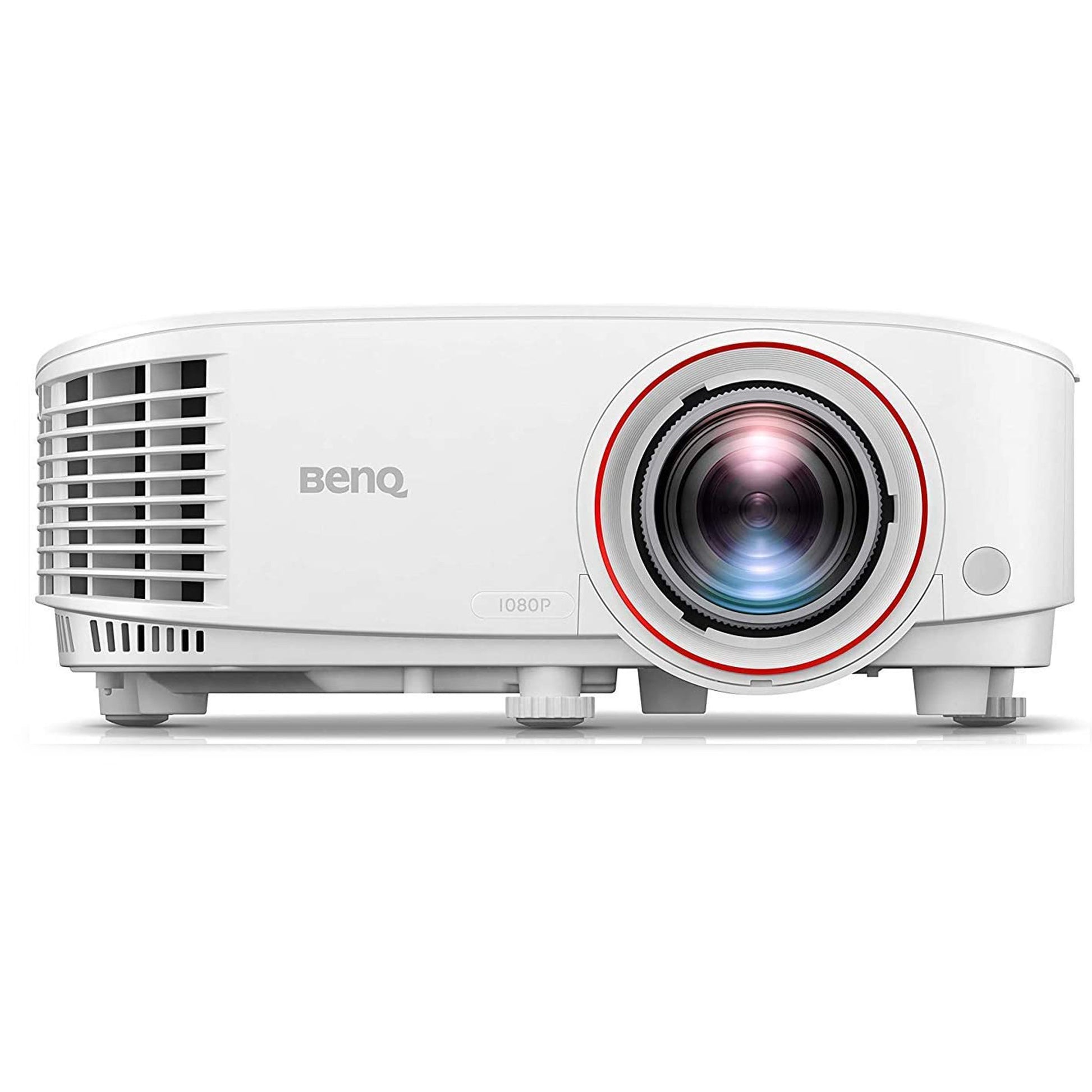

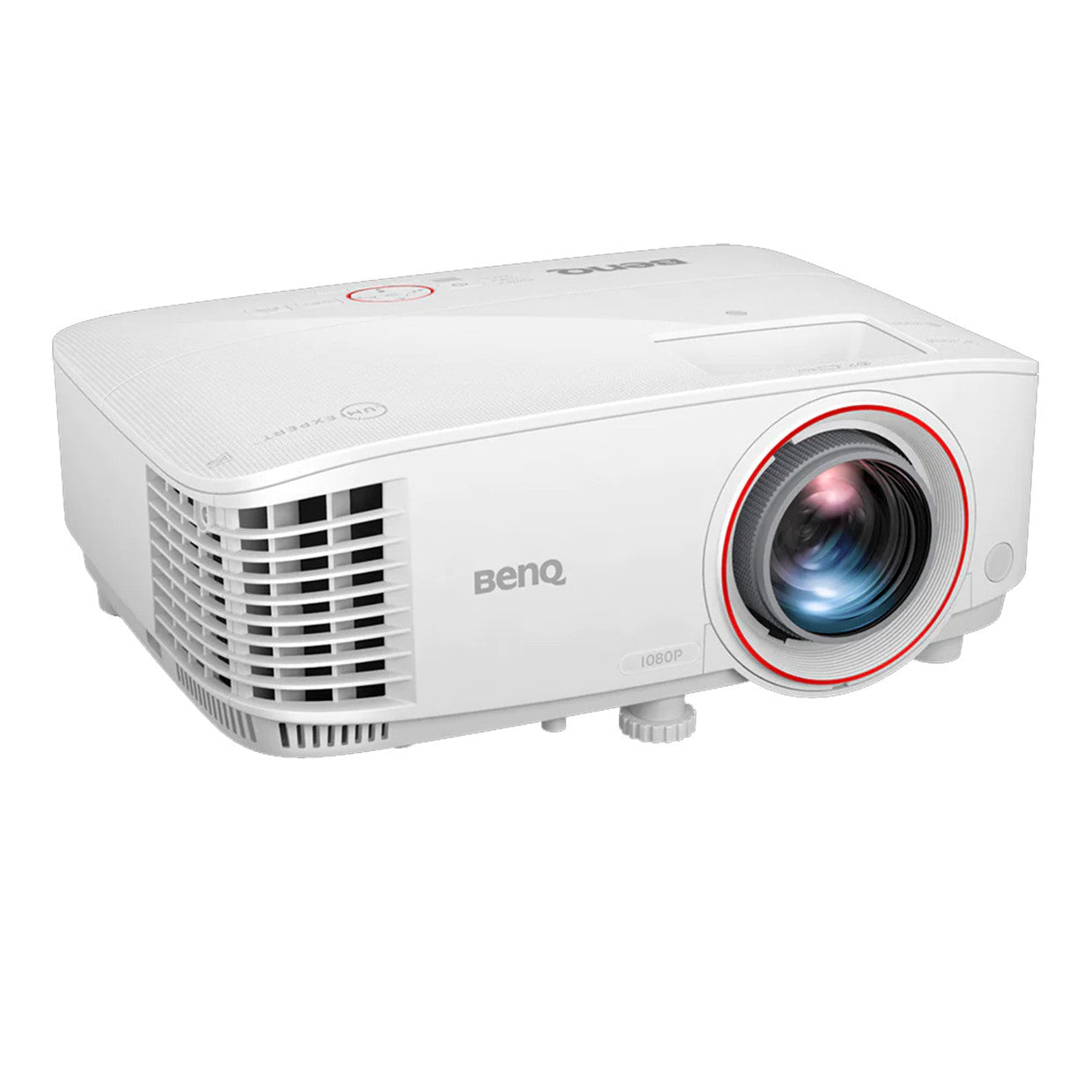

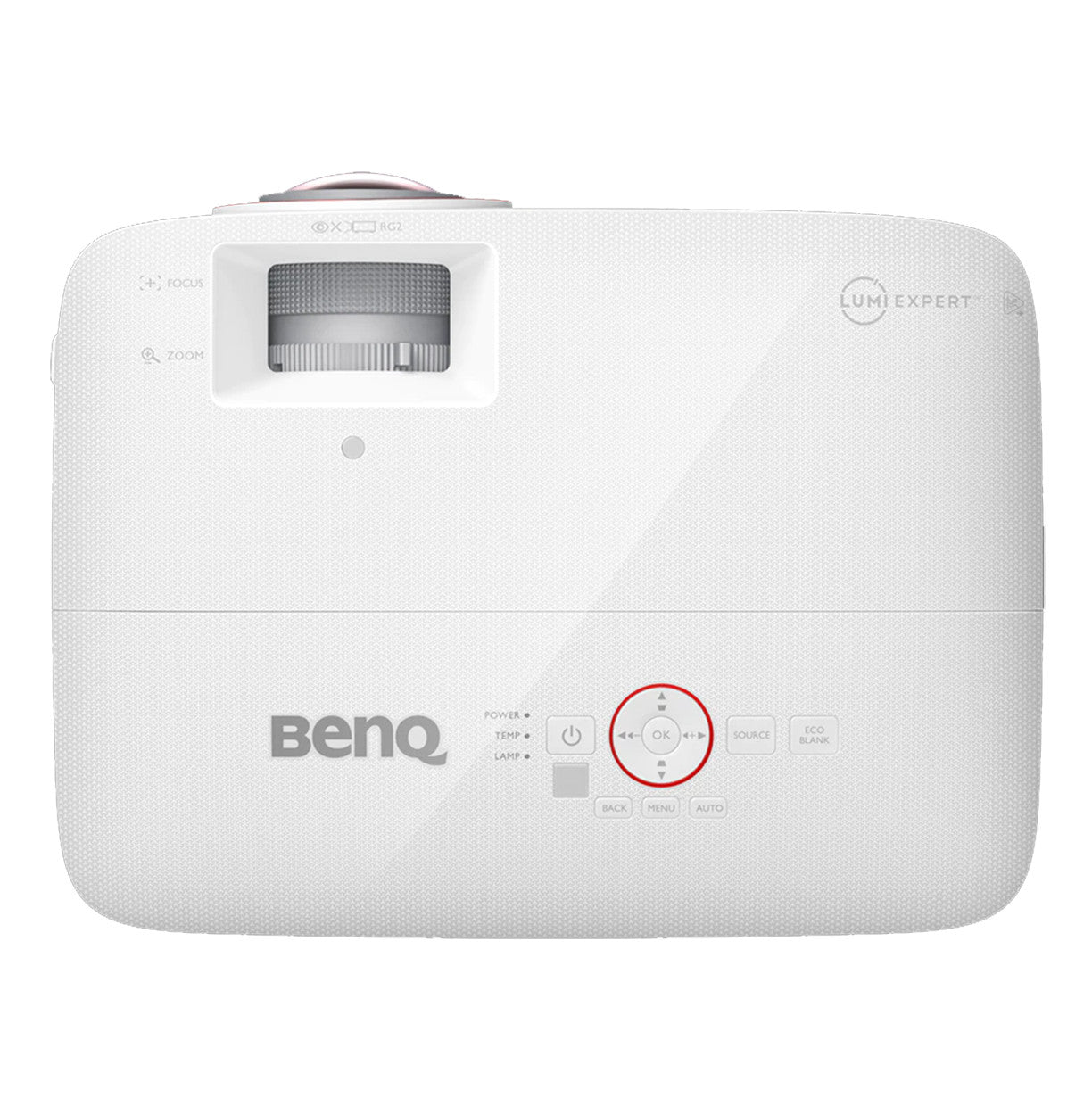

BenQ TH671ST 3000-Lumen Short Throw 1080P Golf Simulator Projector

Bright, Short Throw ProjectionDelivers 3,000 ANSI lumens for vivid, detailed visuals even in bright rooms and produces a 100" image from just 5 feet away.

Full HD 1080P ResolutionExperience sharp, lifelike visuals with true 1920x1080 resolution for detailed golf simulations and cinematic entertainment.

Vivid Color AccuracyAchieves 92% DCI-P3 color space coverage and 10,000:1 contrast ratio for true-to-life hues and rich depth.

Ultra-Low Input LagWith a 16.7 ms response time at 1080p/60Hz, the TH671ST ensures fluid, real-time visuals making it ideal for golf simulators and gaming.

Built-in 5W SpeakerFeatures a chambered speaker with BenQ’s audio-enhancing EQ technology for crisp highs and full bass tones.

Auto Vertical Keystone CorrectionAutomatically adjusts the image for a perfectly squared projection from various angles, simplifying setup.

1.1x Zoom FlexibilityProvides a wide range of throw distances and easy room placement for both ceiling mount and tabletop installations.

Multiple Picture ModesChoose from modes including 3D, Bright, Cinema, Game, Sport, and User presets for optimized viewing in any scenario.

Universal ConnectivityEquipped with HDMI, USB, RS232, VGA, and audio ports to connect easily with PCs, gaming consoles, or simulators.

Long Lamp LifeOffers up to 15,000 hours of lamp life in LampSave mode, reducing maintenance and maximizing usage over time.

Included with Your Purchase:

• BenQ TH671ST 3000-Lumen Short Throw 1080P Golf Simulator Projector
• Remote Control with Battery (RCV013)
• Power Cord (1.8M)
• VGA (D-sub 15pin) Cable (1.5M)
• User Manual CD
• Quick Start Guide
• Warranty Card
• Lens Cover

Display:

• Brightness (ANSI lumens): 3000
• Resolution: 1080P (1920×1080)
• Native Aspect Ratio: 16:9
• Contrast Ratio (FOFO): 10,000:1
• Display Color: 30-bit (1.07 billion colors)
• Light Source: Lamp
• Light Source Life: Normal 4000 hrs, ECO 10000 hrs, SmartEco 10000 hrs, LampSave 15000 hrs

Optical:

• Throw Ratio: 0.69~0.83
• Zoom Ratio: 1.2x
• Lens: F/#=2.6~2.78, f=10.2~12.24
• Projection Offset (Full-Height): 102.5%
• Keystone Adjustment: 1D, Vertical ± 40 degrees

Picture:

• Rec. 709 Coverage: 92%
• Picture Modes: 3D, Bright, Cinema, Game, Sport, User 1, User 2, Vivid TV

Compatibility:

• Input Lag (1080P 60Hz): 16.7 ms
• Resolution Support: VGA (640×480) to WUXGA_RB (1920×1200) *RB = Reduced Blanking
• Horizontal Frequency: 15K~102KHz

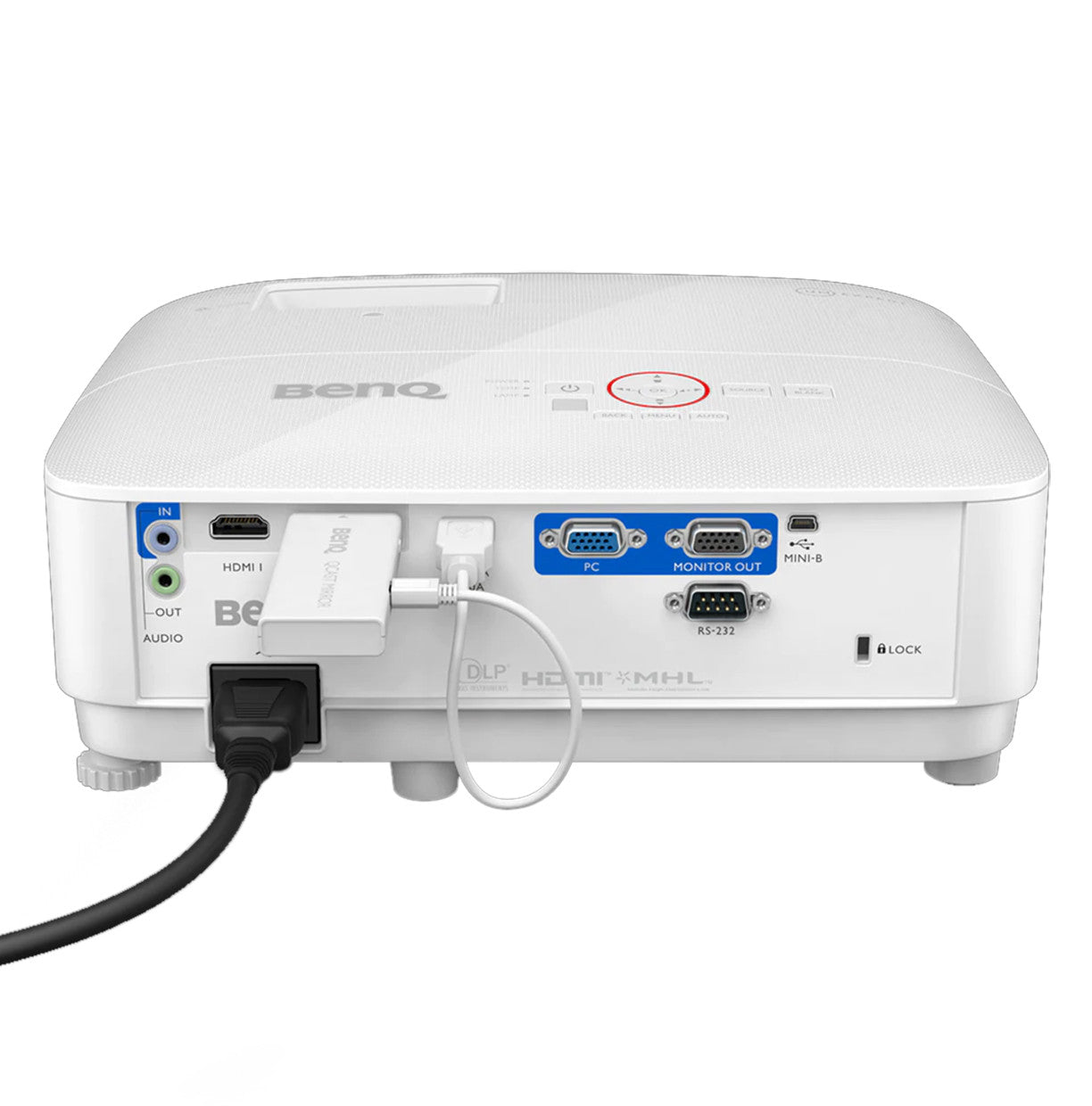

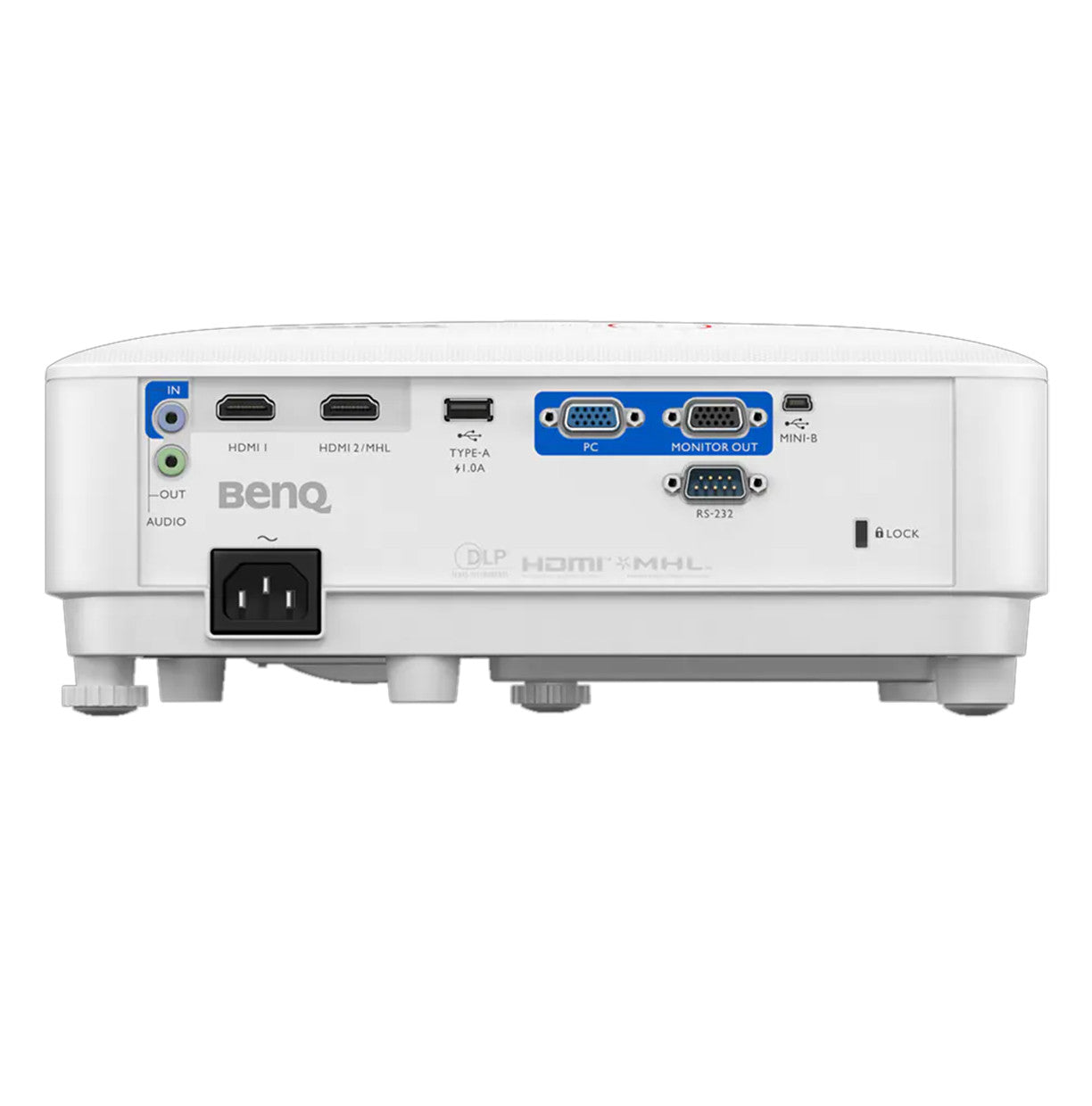

I/O Interface:

• PC In (D-sub 15pin): (1)
• Monitor Out (D-sub 15pin): (1)
• HDMI In: (2), HDMI-1 (1.4a), HDMI-2 (1.4a/HDCP1.4/MHL)
• USB Type A: (1), USB Type A-1 (2.0/Power Supply 1.0A)
• USB Type Mini B: (1), USB Type Mini B-1 (Service)
• RS232 In (DB-9pin): (1)

Audio:

• Speaker: (1), 5W
• Audio In (3.5mm Mini Jack): (1)
• Audio Out (3.5mm Mini Jack): (1)

Environment:

• Operating Temperature: 0~40℃
• Power Supply: AC 100 to 240 V, 50/60 Hz
• Typical Power Consumption (110V): 320W
• Stand-by Power Consumption: <0.5W
• Acoustic Noise (Typ./Eco): 33/29 dB

Accessories:

• Carry Bag: 5J.J3T09.001 (Optional)
• Remote Control with Battery: RCV013
• Power Cord (by region): (x1) 1.8M
• VGA (D-sub 15pin) Cable: (x1) 1.5M
• User Manual CD: (x1) 27L
• 3D Glasses: DGD5 (Optional)
• Quick Start Guide: (x1) 18L
• Warranty Card (by region): Yes
• Lens Cover: Yes
• Universal Ceiling Mount: CM00G3 (Optional)

Dimension & Weight:

• Dimensions: 11.7"W× 4.7"H × 8.8"D
• Net Weight: 5.95 lbs

Projection System:

• Projection System: DLP

How to Install a Ceiling Mounted Golf Simulator Projector

How to fill up your 4:3 impact screen

Q: Is the BenQ TH671ST suitable for golf simulators?A: Yes, its short throw design and low input lag make it ideal for golf simulators, providing a large, responsive image even in compact setups.

Q: Can it be used in bright rooms?A: Absolutely. With 3,000 ANSI lumens, it delivers bright and vibrant images even in well-lit environments.

Q: Does it support 3D projection?A: Yes, it includes a dedicated 3D mode and is compatible with BenQ DGD5 3D glasses (optional).

Q: What is the lamp lifespan?A: The lamp lasts up to 15,000 hours in LampSave mode, depending on usage conditions.

Q: How easy is setup?A: The TH671ST features auto vertical keystone correction and 1.1x zoom, making installation fast and straightforward for both ceiling and tabletop mounting.
