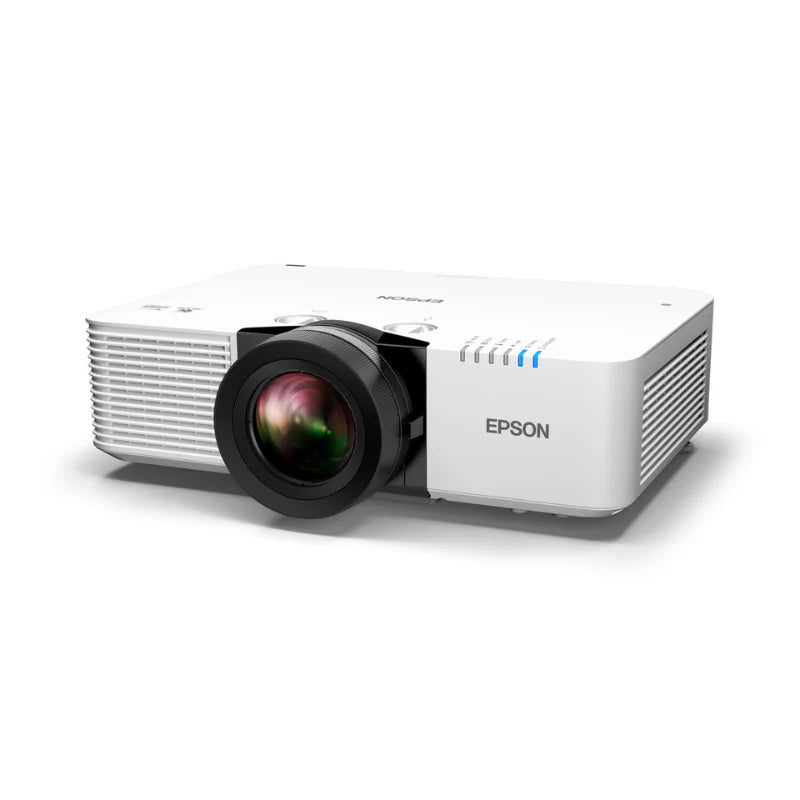

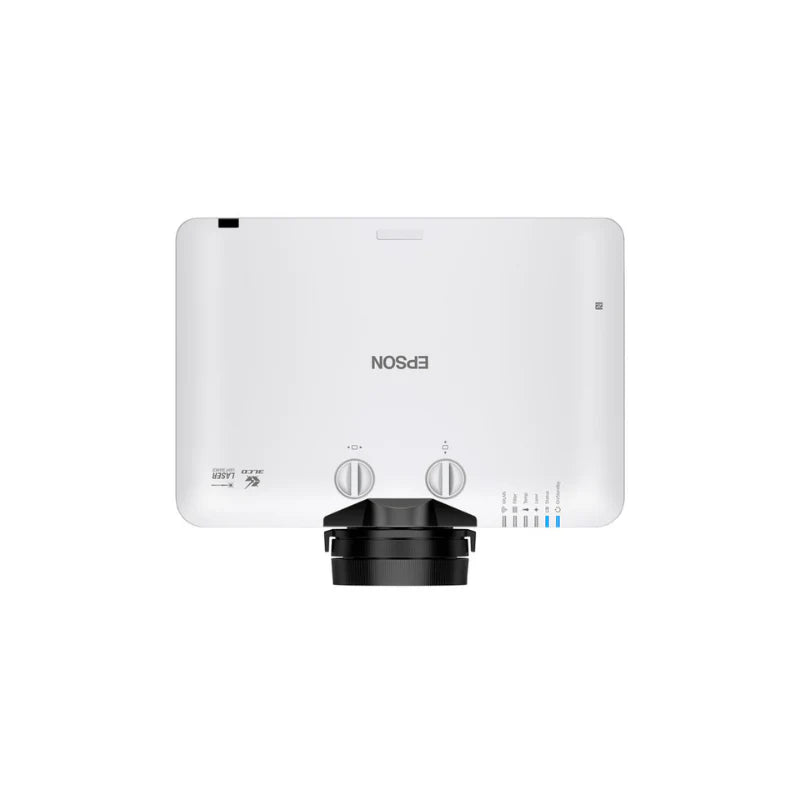

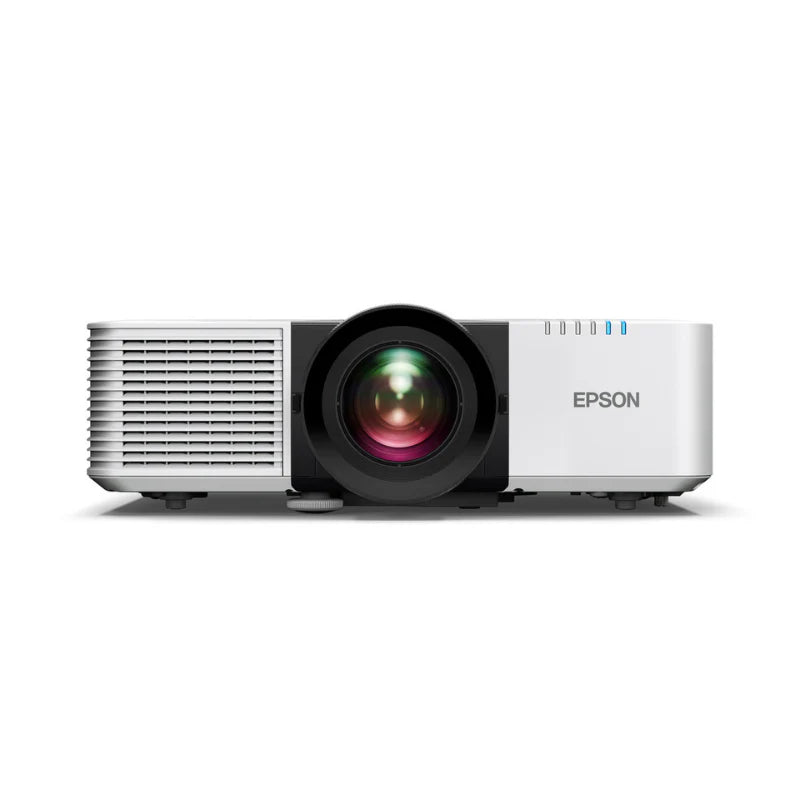

Epson L690SU Powerlite 6200-Lumen WUXGA Short Throw 3LCD Laser Projector

Ultra-Bright 6,200 Lumen OutputDelivers exceptional brightness and color accuracy for stunning visuals in any lighting conditions.

WUXGA Resolution with 4K Signal SupportDisplays sharp, clear content at 1920 x 1200 resolution, with the ability to accept up to 4K input signals.

Flexible Short Throw ProjectionEasily create large, shadow-free images up to 400" diagonal, even in tight spaces, thanks to a 0.79 – 1.36 throw ratio and 1.7x optical zoom.

Effortless InstallationWide lens shift, built-in geometric correction, 360-degree mounting, and a universal VESA pattern streamline setup in any space.

Low Maintenance, High ReliabilityA 30,000-hour laser light source and air filter in Extended Mode minimize downtime and reduce operational costs.

Advanced Wireless ConnectivityIncludes Wi-Fi 6/6E, Apple AirPlay 2, Miracast, and Epson iProjection for fast, flexible screen sharing from multiple devices.

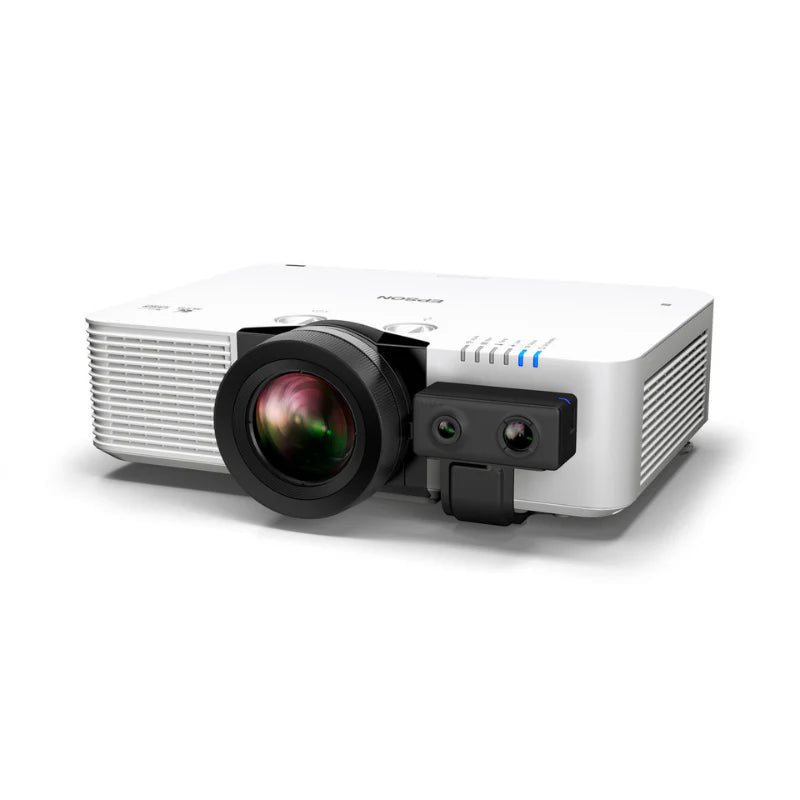

Professional Multi-Projector ToolsCompatible with the optional PixAlign camera for advanced tools like screen matching, auto color calibration, and easy stacking.

Intuitive Integration and ControlFeatures built-in NFC, HDBaseT, dual HDMI (in/out), and robust remote management for seamless integration with AV systems.

Sustainable, Eco-Friendly DesignDesigned with RoHS compliance, recycling options, and 100% renewable electricity used in design and manufacturing.

Included with Your Purchase:

• Epson L690SU Powerlite 6200-Lumen WUXGA Short Throw 3LCD Laser Projector
• Power Cable
• Projector Remote Control with Batteries
• Quick Setup Sheet
• Cable Cover
• Quick Setup Poster

General Specifications:

• Projection System: RGB liquid crystal shutter projection system
• Projection Method: Front/rear/ceiling mount
• LCD Size: 0.67" (C2 Fine)
• Driving Method: Poly-Silicon TFT Active Matrix
• Pixel Number: 2,304,000 Dots (1920 x 1200) x 3
• Native Resolution: WUXGA (1920 x 1200)
• Resolution On-Screen: WUXGA (1920 x 1200)
• Resize: 640 x 480, 800 x 600, 1280 x 1024, 1400 x 1050
• Aspect Ratio: Supports 4:3, 16:10, 16:9*, 16:6*, 21:9*
  * With vertical image shift control within letterbox area
• Pixel Arrangement: Cross stripe
• Color Brightness: Color Light Output: 6,200 lumens
• White Brightness: White Light Output: 6,200 lumens
• Contrast Ratio: Up to 5,000,000:1
• Brightness Uniformity (Typical): 88%
• Color Reproduction: Up to 1.07 billion colors
• Size (Projected Distance): 60" – 400"
• Projected Distance: 80" Screen 1.38 m
• Lens Shift: Vertical: ±50%; Horizontal: ±20%
• Keystone Correction: Vertical: ±30 degrees; Horizontal: ±30 degrees
• Light Source: Laser diode
• Light Source Life: Normal: 20,000 hours; Quiet: 20,000 hours; Extended: 30,000 hours

Projection Lens (Short Throw):

• Type: Optical zoom (manual)/focus (manual)/corner focus (manual)
• F-Number: 1.7 – 2.1
• Focal Length: 11.6mm – 19.9mm
• Zoom Ratio: 1.0 – 1.7x (optical)
• Throw Rate Range: 0.79 – 1.36 (optical)
• Lens Cover: Lens cap (without string)

Other Features:

• Operating Temperature: 32˚F to 113˚F (0˚C to 45˚C)
• Power Supply Voltage: 100V – 240V ± 10%, 50/60 Hz AC
• Auto Power On: Signal Detection On HDMI/Plug-In Detection (HDMI, USB, VGA 15-Pin, BNC)
• Sleep Mode: Yes (with timer)
• HDMI CEC Control: Yes
• Power Consumption:
  415W (Normal Mode)
  305W (Quiet and Extended)
  2.4W (Standby comm on)
  0.3W (Standby comm off)
• Fan Noise: 38dB (Normal Mode); Max. 27dB (ECO Mode)
• Security: Security cable hole, Kensington lock provision
• A/V Mute: Yes
• Speaker(s): 10W (mono)
• Split Screen: Yes (up to 2 screens)
• Content Playback: Yes
• Quick Corner: Yes
• Arc Correction: Yes
• Edge Blending: Yes
• Screen Sharing: Yes
• Corner Wall: Yes
• Curved Surface: Yes
• Camera: Optional
• Miracast: Yes
• Epson iProjection: Yes (V4)
• Apple AirPlay 2: Yes

Effective Scanning Frequency Range (Digital):

• Pixel Clock: 25.1 MHz to 594 MHz
• Horizontal: 26 kHz to 135 kHz
• Vertical: 23.98/24/25/29.97/30/50/59.94/60 Hz

Dimensions:

• Dimensions Excluding Feet: 17.32"W x 11.97"D x 4.80"H
• Dimensions Including Feet: 17.32"W x 14.25"D x 5.94"H
• Weight: 22 lbs

Network and Remote Control Features:

• Remote Control Features: Power, source search selection, A/V mute, number input, menu, esc, select, freeze, ID, customize, e-zoom, mute, volume, playback control and pointer functions
• Operating Angle:
  Rear: Right/Left: -55 to +55 degrees
  Upper/Lower: +75 to +15 degrees
  Front: right/left: -30 to +30 degrees
  Upper/Lower: 0 to +60 degrees
• Operating Distance: 26 ft (8m)
• Network Control: PJLink, Creston Integrated Partner, Crestron Connected V2 With XiO Cloud, Extron IP Link, Extron XTP, AMX, Control4

Eco Features:

• RoHS compliant
• End-of-life options available
• Design and manufacturing centers utilize 100% renewable electricity
• Dynamic Contrast (ECO) Mode reduces power consumption by 36%

Interfaces:

• (2) HDMI (HDCP 2.3)
• (1) HDMI Out
• (1) HDBaseT
• (1) Variable Audio Out: Mini Stereo
• (1) USB Connector Type-A
• (1) USB Connector Type-B
• (1) Serial: RS-232C
• (1) Wired LAN RJ45
• Wireless LAN: Built-in

Q: What is the difference between the PowerLite L695SU and L690SU projectors?A: The only difference between the L695SU and L690SU is the color of the projector. The L695SU comes in black, while the L690SU comes in white. Both models have identical specifications and features.

Q: How long will the laser light source last?A: In Extended Mode, the laser light source and air filter can last up to 30,000 hours, providing years of maintenance-free operation.

Q: What is the largest image I can project?A: You can project images up to 400" diagonal for immersive presentations or large-space applications.

Q: Can I install the projector at any angle?A: Yes, with 360-degree mounting, wide lens shift, and geometric correction, installation is flexible and easy.

Q: Does it support wireless screen sharing?A: Yes, it includes Wi-Fi 6/6E and supports Apple AirPlay 2, Miracast, and Epson iProjection for seamless wireless connectivity.

Q: What connections are available?A: Dual HDMI, HDBaseT, wired LAN, USB, and built-in wireless networking are all supported.

Q: Is this projector suitable for multi-projector setups?A: Absolutely. The optional PixAlign camera enables advanced screen matching and stacking for multi-projector applications.

Q: What’s included with my purchase?A: The Epson L690SU projector, power cable, remote with batteries, quick setup sheet, cable cover, and quick setup poster are included
