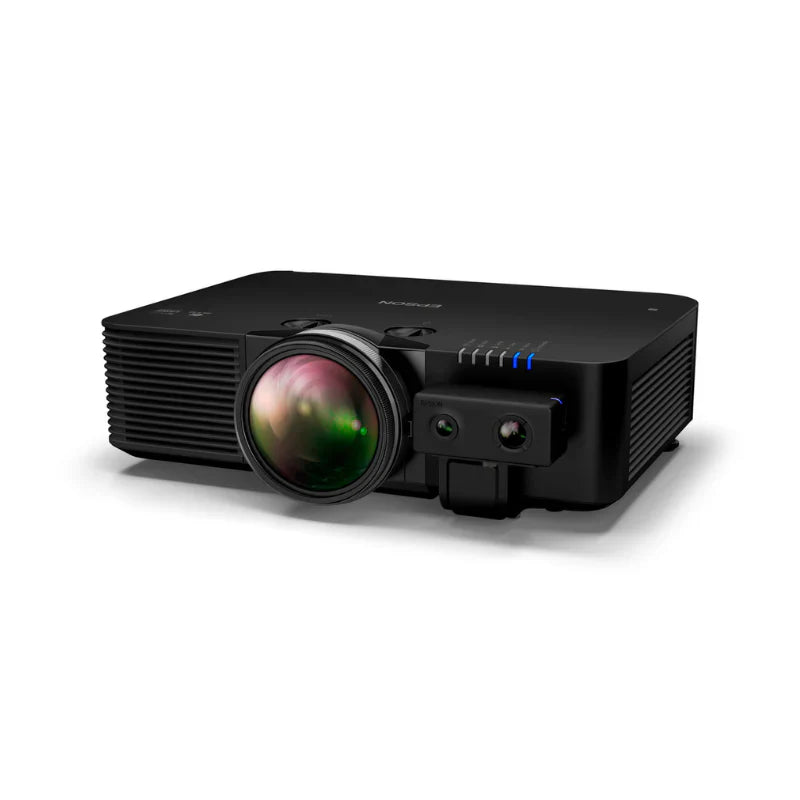

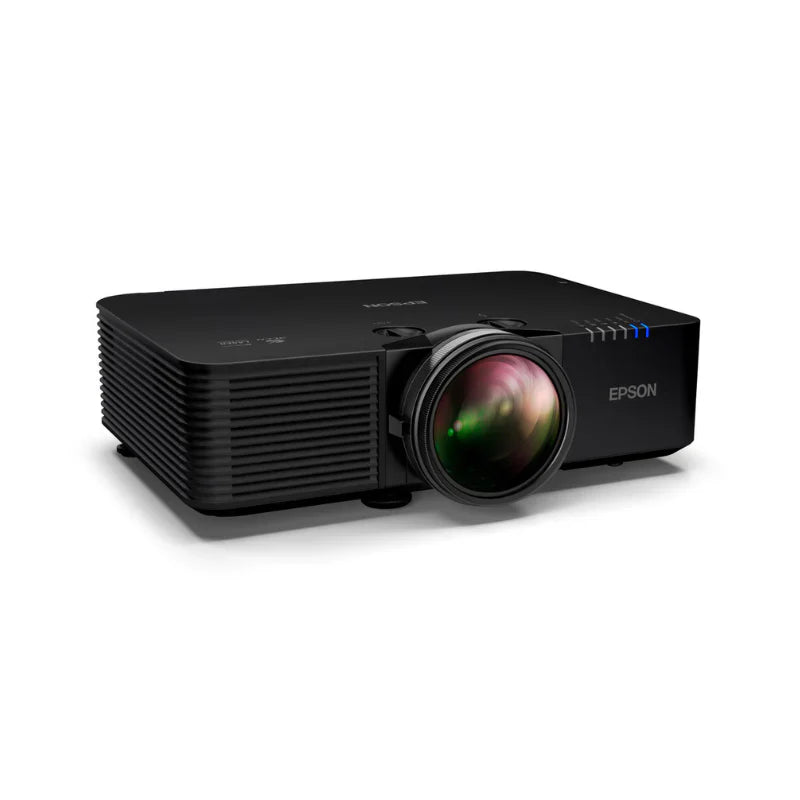

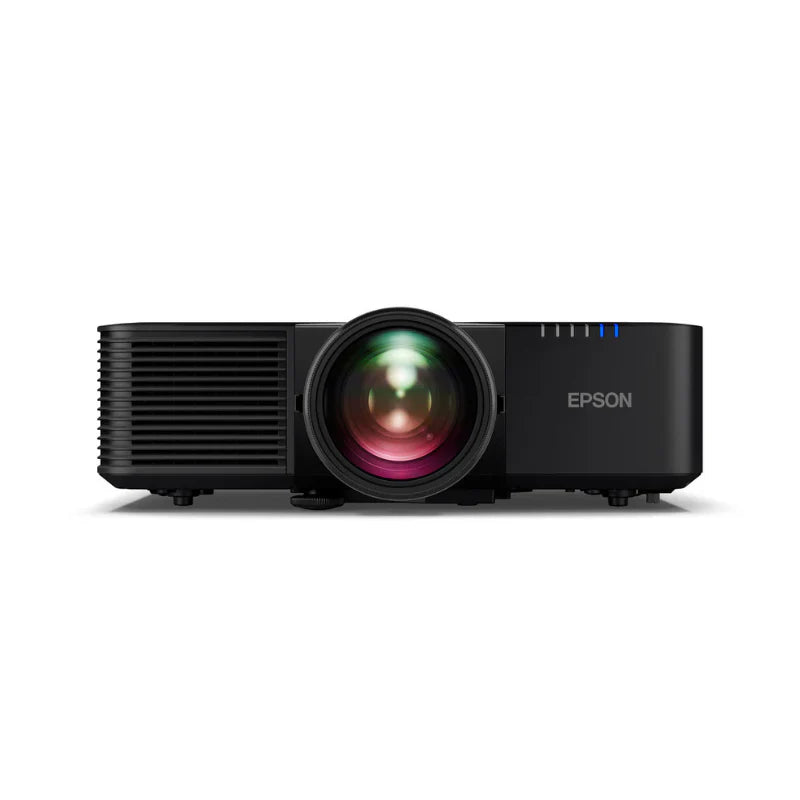

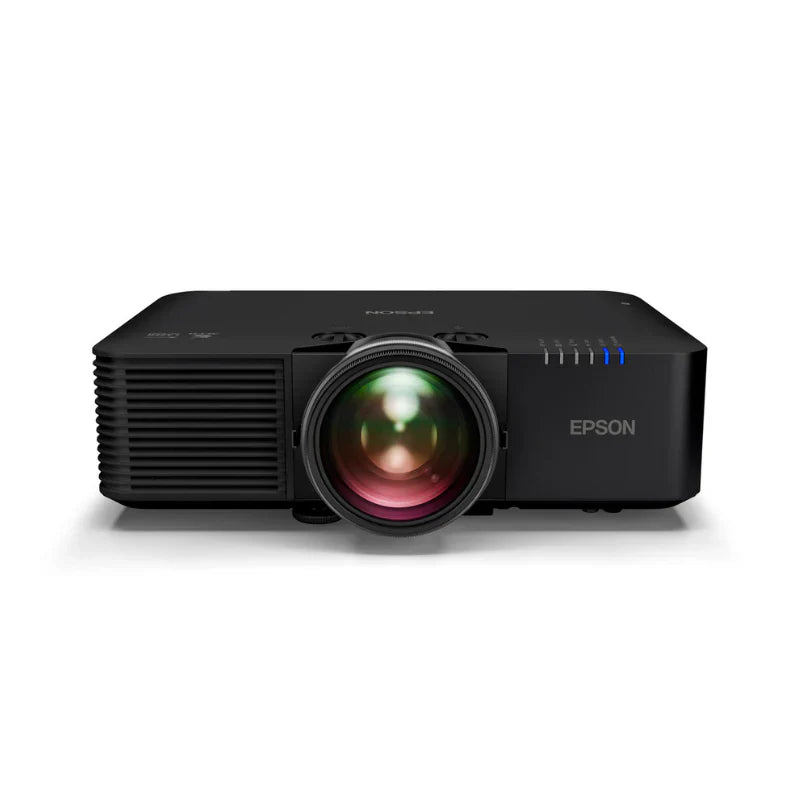

Epson L695SU Powerlite 6200-Lumen WUXGA Short Throw 3LCD Laser Projector

Bright, True-To-Life Images6,200 lumens of equal color and white brightness and advanced 3LCD technology provide vibrant, clear images—even in rooms with high ambient light.

Full HD WUXGA ResolutionAccepts up to 4K signal and delivers crisp 1920 x 1200 resolution for detailed, high-definition visuals.

Large Displays From Short Distances0.79 – 1.36 throw ratio and 1.7x optical zoom allow for large, shadow-free images up to 400" diagonal in standard or ultra wide formats.

Simplified InstallationCompact and lightweight design with wide vertical and horizontal lens shift, geometric correction tools, and 360-degree mounting options.

Virtually Maintenance-Free Laser Light SourceUp to 30,000-hour laser light source and air filter in Extended Mode reduce downtime and service requirements.

Advanced Wireless Networking And Content SharingWi-Fi 6/6E, WPA 3-enterprise security, and support for Epson iProjection, Apple AirPlay 2, and Miracast for flexible, secure screen casting.

Built-In NFC For Fast ConfigurationRead and write projector settings instantly with the Epson Projector Config Tool app.

PixAlign Camera CompatibleAdds advanced multi-projector features such as screen matching, auto color calibration, blending assist, and stacking for complex installations.

Enhanced ConnectivityIncludes HDBaseT, dual HDMI in, HDMI out, and more for easy daisy-chaining and signal monitoring.

Eco-Friendly DesignRoHS compliant, with energy-saving features, end-of-life options, and manufacturing powered by renewable electricity.

Included with Your Purchase:

• Epson L695SU Powerlite 6200-Lumen WUXGA Short Throw 3LCD Laser Projector
• Power Cable
• Projector Remote Control with Batteries
• Quick Setup Sheet
• Cable Cover
• Quick Setup Poster

General Specifications:

• Projection System: RGB liquid crystal shutter projection system
• Projection Method: Front/rear/ceiling mount
• LCD Size: 0.67" (C2 Fine)
• Driving Method: Poly-Silicon TFT Active Matrix
• Pixel Number: 2,304,000 Dots (1920 x 1200) x 3
• Native Resolution: WUXGA (1920 x 1200)
• Resolution On-Screen: WUXGA (1920 x 1200)
• Resize: 640 x 480, 800 x 600, 1280 x 1024, 1400 x 1050
• Aspect Ratio: Supports 4:3, 16:10, 16:9*, 16:6*, 21:9*
  * With vertical image shift control within letterbox area
• Pixel Arrangement: Cross stripe
• Color Brightness: Color Light Output: 6,200 lumens
• White Brightness: White Light Output: 6,200 lumens
• Contrast Ratio: Up to 5,000,000:1
• Brightness Uniformity (Typical): 88%
• Color Reproduction: Up to 1.07 billion colors
• Size (Projected Distance): 60" – 400"
• Projected Distance: 80" Screen 1.38 m
• Lens Shift: Vertical: ±50%; Horizontal: ±20%
• Keystone Correction: Vertical: ±30 degrees; Horizontal: ±30 degrees
• Light Source: Laser diode
• Light Source Life: Normal: 20,000 hours; Quiet: 20,000 hours; Extended: 30,000 hours

Projection Lens (Short Throw):

• Type: Optical zoom (manual)/focus (manual)/corner focus (manual)
• F-Number: 1.7 – 2.1
• Focal Length: 11.6mm – 19.9mm
• Zoom Ratio: 1.0 – 1.7x (optical)
• Throw Rate Range: 0.79 – 1.36 (optical)
• Lens Cover: Lens cap (without string)

Other Features:

• Operating Temperature: 32˚F to 113˚F (0˚C to 45˚C)
• Power Supply Voltage: 100V – 240V ± 10%, 50/60 Hz AC
• Auto Power On: Signal Detection On HDMI/Plug-In Detection (HDMI, USB, VGA 15-Pin, BNC)
• Sleep Mode: Yes (with timer)
• HDMI CEC Control: Yes
• Power Consumption:
  415W (Normal Mode)
  305W (Quiet and Extended)
  2.4W (Standby comm on)
  0.3W (Standby comm off)
• Fan Noise: 38dB (Normal Mode); Max. 27dB (ECO Mode)
• Security: Security cable hole, Kensington lock provision
• A/V Mute: Yes
• Speaker(s): 10W (mono)
• Split Screen: Yes (up to 2 screens)
• Content Playback: Yes
• Quick Corner: Yes
• Arc Correction: Yes
• Edge Blending: Yes
• Screen Sharing: Yes
• Corner Wall: Yes
• Curved Surface: Yes
• Camera: Optional
• Miracast: Yes
• Epson iProjection: Yes (V4)
• Apple AirPlay 2: Yes

Effective Scanning Frequency Range (Digital):

• Pixel Clock: 25.1 MHz to 594 MHz
• Horizontal: 26 kHz to 135 kHz
• Vertical: 23.98/24/25/29.97/30/50/59.94/60 Hz

Dimensions:

• Dimensions Excluding Feet: 17.32"W x 11.97"D x 4.80"H
• Dimensions Including Feet: 17.32"W x 14.25"D x 5.94"H
• Weight: 22 lbs

Network and Remote Control Features:

• Remote Control Features: Power, source search selection, A/V mute, number input, menu, esc, select, freeze, ID, customize, e-zoom, mute, volume, playback control and pointer functions
• Operating Angle:
  Rear: Right/Left: -55 to +55 degrees
  Upper/Lower: +75 to +15 degrees
  Front: right/left: -30 to +30 degrees
  Upper/Lower: 0 to +60 degrees
• Operating Distance: 26 ft (8m)
• Network Control: PJLink, Creston Integrated Partner, Crestron Connected V2 With XiO Cloud, Extron IP Link, Extron XTP, AMX, Control4

Eco Features:

• RoHS compliant
• End-of-life options available
• Design and manufacturing centers utilize 100% renewable electricity
• Dynamic Contrast (ECO) Mode reduces power consumption by 36%

Interfaces:

• (2) HDMI (HDCP 2.3)
• (1) HDMI Out
• (1) HDBaseT
• (1) Variable Audio Out: Mini Stereo
• (1) USB Connector Type-A
• (1) USB Connector Type-B
• (1) Serial: RS-232C
• (1) Wired LAN RJ45
• Wireless LAN: Built-in

Q: What is the difference between the PowerLite L695SU and L690SU projectors?A: The only difference between the L695SU and L690SU is the color of the projector. The L695SU comes in black, while the L690SU comes in white. Both models have identical specifications and features.

Q: How long will the laser light source last?A: In Extended Mode, the laser light source and air filter can last up to 30,000 hours, providing years of maintenance-free operation.

Q: What is the largest image I can project?A: You can project images up to 400" diagonal for immersive presentations or large-space applications.

Q: Can I install the projector at any angle?A: Yes, with 360-degree mounting, wide lens shift, and geometric correction, installation is flexible and easy.

Q: Does it support wireless screen sharing?A: Yes, it includes Wi-Fi 6/6E and supports Apple AirPlay 2, Miracast, and Epson iProjection for seamless wireless connectivity.

Q: What connections are available?A: Dual HDMI, HDBaseT, wired LAN, USB, and built-in wireless networking are all supported.

Q: Is this projector suitable for multi-projector setups?A: Absolutely. The optional PixAlign camera enables advanced screen matching and stacking for multi-projector applications.

Q: What’s included with my purchase?A: The Epson L695SU projector, power cable, remote with batteries, quick setup sheet, cable cover, and quick setup poster are included.
