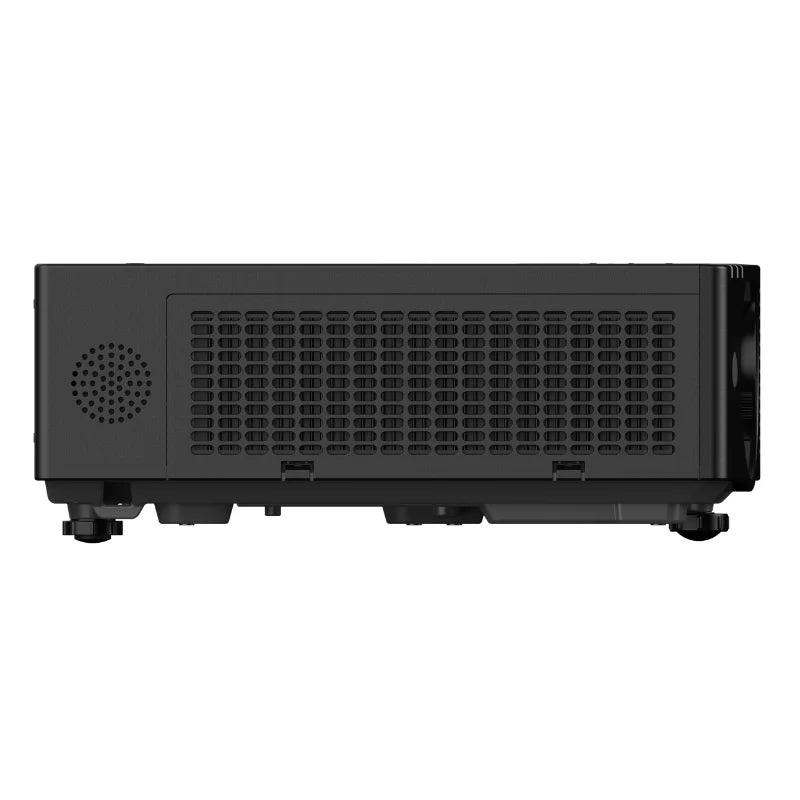

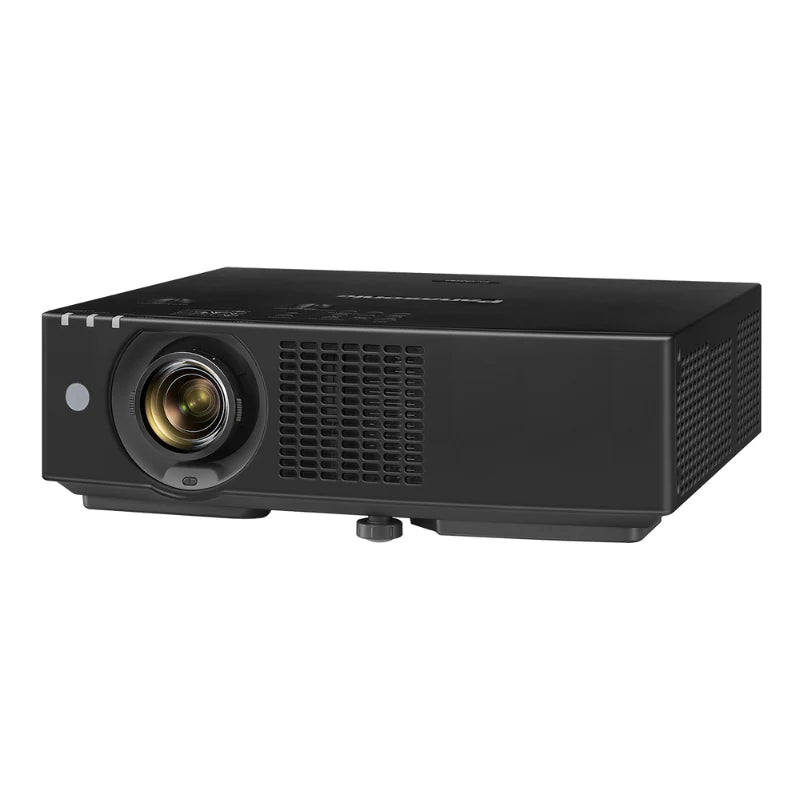

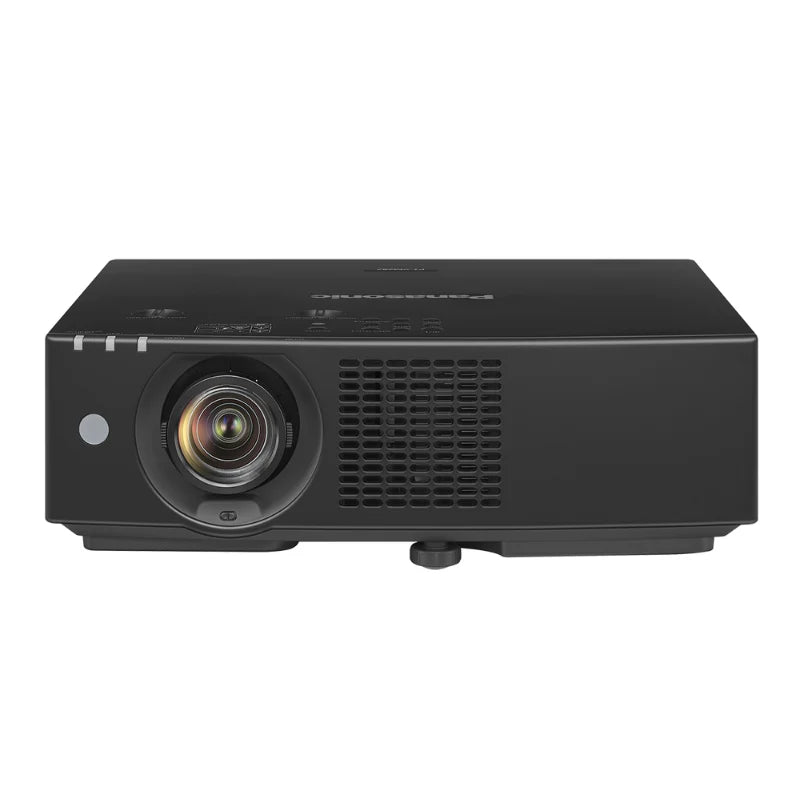

Panasonic PT-VMZ62BU7 6500-Lumen WUXGA Normal Throw Golf Simulator Projector

High Brightness 6,500 Lumens

Delivers crisp, clear images with vibrant color even in brightly lit environments, ideal for golf simulators and large spaces.

WUXGA Resolution (1920 x 1200)

Produces smooth, detailed visuals and sharp text for immersive simulations and professional presentations.

Dynamic 5,000,000:1 Contrast Ratio

Automatically adjusts to bring out deep blacks, brilliant whites, and true-to-life realism.

Daylight View Basic & Vivid Green Mode

Optimizes picture clarity based on ambient light, while Vivid Green Mode enhances greens for more lifelike sports and simulation displays.

Compact, Lightweight, And Sleek Black Finish

One of the lightest in its class, with a modern look that fits seamlessly into any golf simulator or AV setup.

Flexible, Hassle-Free Installation

Features 1.6x optical zoom, vertical lens shift (+44%), horizontal shift (±20%), and a digital zoom extender for easy and precise placement.

Advanced Screen Adjustment Suite

Curved screen correction, grid, and 6-point adjustment, plus independent 4-corner control ensure perfect image alignment.

Eco-Conscious, Efficient Operation

Built with 59% recycled plastic and shipped in recyclable cardboard, offering reduced power consumption and maintenance costs.

Long-Life, Low-Maintenance Laser Light Source

Enjoy up to 20,000 hours of consistent operation without lamp changes or downtime.

Washable, Reusable ECO Filter

Captures fine dust and can be washed and reused up to two times for extended service intervals.

4K Input Support & Flexible Connectivity

Accepts 4K video via HDMI and DIGITAL LINK, with CEC compatibility for easy integration with other AV systems.

Wireless Presentation Ready

Optional wireless module supports quick casting from laptops or mobile devices using QR code connection.

Auto Power On, Image Detection & Quick Start

Streamlines operation and saves energy by powering on automatically, dimming or shutting off when idle, and reaching full brightness in about one second.

Automated Scheduling & Multi-Device Management

Schedule power, shutter, and input changes, plus manage up to 2,048 devices with Multi Monitoring & Control Software.

Included with Your Purchase:

• Panasonic PT-VMZ62BU7 6500-Lumen WUXGA Normal Throw Golf Simulator Projector
• Power Cord
• Remote Control
• (2) 1.5V AA batteries

General Specifications:

• Projector Type: LCD projector
• Display System: Transparent LCD panel (x 3, R/G/B)
• Selectable Aspect Ratio: 16:10, 16:9, 4:3, 21:9
• Panel Size: 0.64" (16:10 aspect ratio)
• Pixels: 2,304,000 (1920 x 1200) pixels x 3
• Light Source: Laser diodes
• Light Output: 6,500 lumens / 6,500 lumens (ANSI)
• Time Until Light Output Declines to 50%: 20,000 hours (Normal/Quiet), 24,000 hours (ECO)
• Resolution: WUXGA (1920 x 1200 pixels)
• Contrast Ratio: 5,000,000:1 (Full On/Full Off)
  (When Picture Mode is set to Dynamic and Dynamic Contrast is set to 1)
• Screen Size (Diagonal): 30" – 300" (0.76 – 7.62 m), 16:10 aspect ratio
• Center-to-Corner Zone Ratio: 85%

Projection Lens:

• Throw Ratio: 1.09 – 1.77:1
• Lens: 1.6x manual zoom, manual focus lens
• F-Number: 1.58 – 1.91
• Focal Length: 15.30 – 24.60 mm
• Digital Zoom Extender: Throw ratio 1.09 – 2.21:1 (corresponding value, when used with optical zoom)

Lens Shift:

• Vertical: +44% (from the origin point of the lens mounter)
• Horizontal: ±20% (from the origin point of the lens mounter)

Keystone Correction:

• Vertical: ±25%
• Horizontal: ±35%

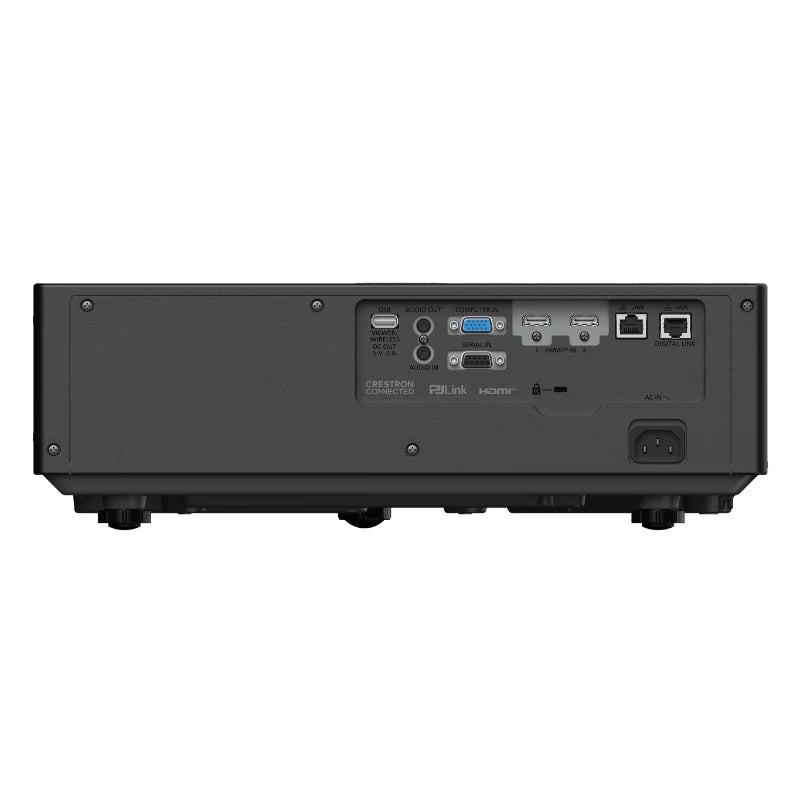

Terminals:

• (2) HDMI 19-pin (HDCP, Deep Color, 4K/30p signal input, CEC supported)
• (2) Computer In: D-sub 15-pin (female) (RGB/YPBPR/YCBCR)
• (1) Audio In: M3 stereo mini-jack
• (1) Audio Out: M3 stereo mini-jack
• (1) Serial In: D-sub 9-pin (female, RS-232C compliant)
• (1) Digital Link/LAN: RJ-45 (HDBaseT compliant, video/network/serial control, 100Base-TX, PJLink [Class 2], HDCP, Deep Color, 4K/30p signal input)
• (1) LAN: RJ-45 (network control, 10Base-T, 100Base-TX, PJLink [Class 2])
• (1) USB Type-A: Memory Viewer, optional wireless module, DC 5V (max 2A) power supply

Network and Control:

• Protocol Versions: IPv4, IPv6

Power and Consumption:

• Power Supply: AC 100V – 240V, 50/60 Hz
• Maximum Power Consumption: 320W (3.3A) (325VA)
  (305W at 200–240V)
• On-Mode Power Consumption:
  Normal: 280W (100–240V), 270W (200–240V)
  ECO: 215W (100–240V), 205W (200–240V)
  Quiet 1: 245W (100–240V), 235W (200–240V)
  Quiet 2: 210W (100–240V), 200W (200–240V)

Audio:

• Built-in Speaker: 10W monaural

Physical:

• Cabinet Materials: Molded plastic
• Filter: Included (estimated maintenance: approx. 20,000 hours)
• Operation Noise: 35dB (Normal/ECO), 30dB (Quiet 1), 25dB (Quiet 2)
• Dimensions (W x H x D):
  Excluding feet: 15.7"W x 4.5"H x 13.7"D (399 x 115 x 348 mm)
  Including feet: 15.7"W x 5.3"H x 13.7"D (399 x 133 x 348 mm)
• Weight: Approx. 15.2 lbs (6.9 kg)

Operating Environment:

• Operating Temperature: 32˚F to 113˚F (0˚C to 45˚C)
• Operating Humidity: 20% – 80% (no condensation)

Applicable Software:

• Multi Monitoring & Control Software
• Projector Network Setup Software
• Presenter Light Software for Windows
• Wireless Projector App for iOS/Android

Resources:

• Panasonic PT-VMZ62BU7 Product Information

• Panasonic PT-VMZ62BU7 Specifications Sheet
• Panasonic PT-VMZ62BU7 Manual

• Panasonic PT-VMZ62BU7 CAD

Panasonic PT-VMZ62BU7 Control Specifications


Q: What is the difference between the Panasonic PT-VMZ62BU7 and PT-VMZ62U7 projectors?A: The only difference between the PT-VMZ62BU7 and PT-VMZ62U7 is the color of the projector. The PT-VMZ62BU7 comes in black, while the PT-VMZ62U7 comes in white. Both models have identical specifications and features.

Q: What is the brightness rating of the PT-VMZ62BU7?A: The PT-VMZ62BU7 provides up to 6,500 lumens, ensuring vivid and clear images even in well-lit environments.

Q: How often do I need to maintain the projector?A: Both the laser light source and ECO Filter offer up to 20,000 hours of maintenance-free operation under standard conditions.

Q: Does the projector support wireless presentations?A: Yes, with the optional wireless module, you can present wirelessly from your laptop or mobile device using QR code setup.

Q: What installation options does the PT-VMZ62BU7 offer?A: With 1.6x optical zoom, wide lens shift, digital zoom extender, and advanced geometry correction, placement is simple and flexible.

Q: Is the PT-VMZ62BU7 environmentally friendly?A: Yes, it uses 59% recycled plastic and comes in recyclable cardboard packaging for reduced environmental impact.
