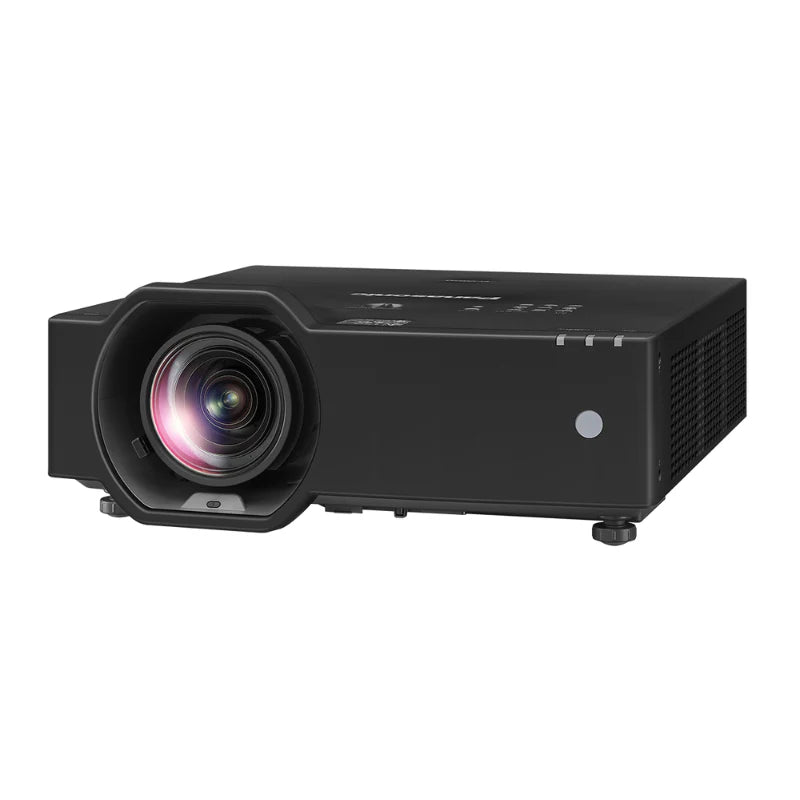

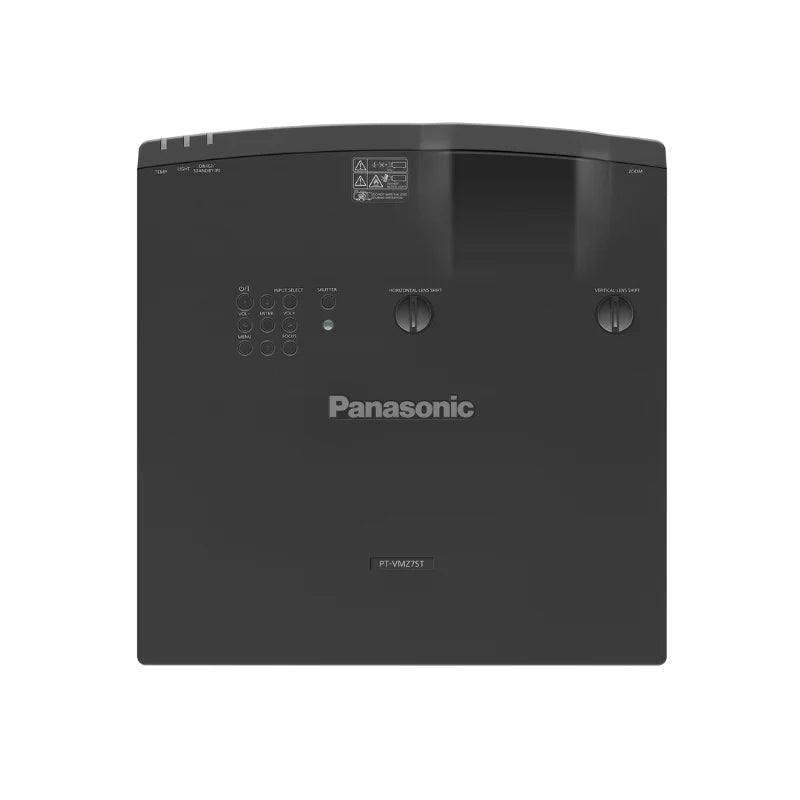

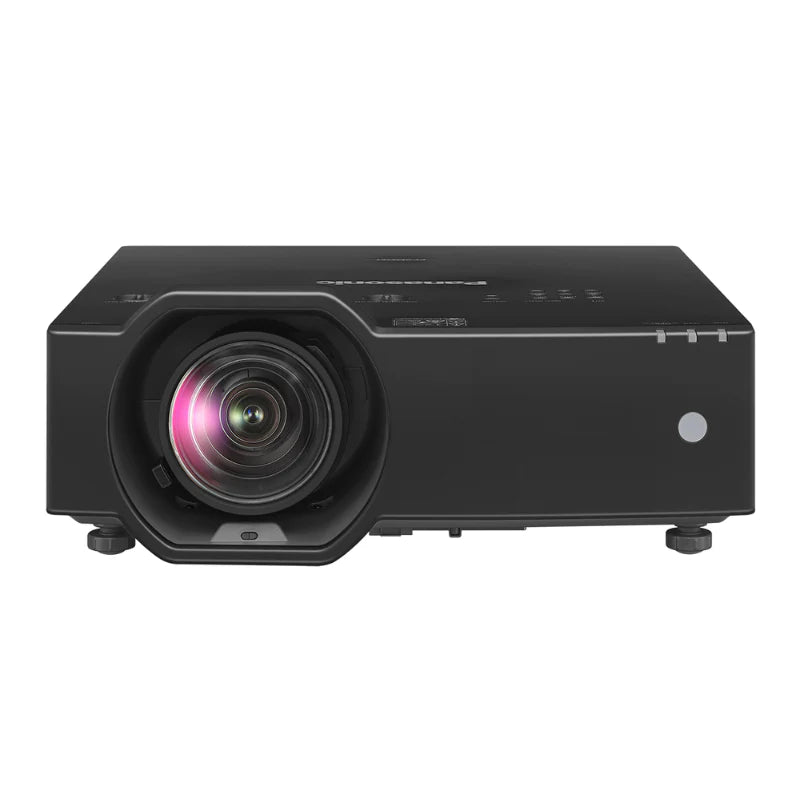

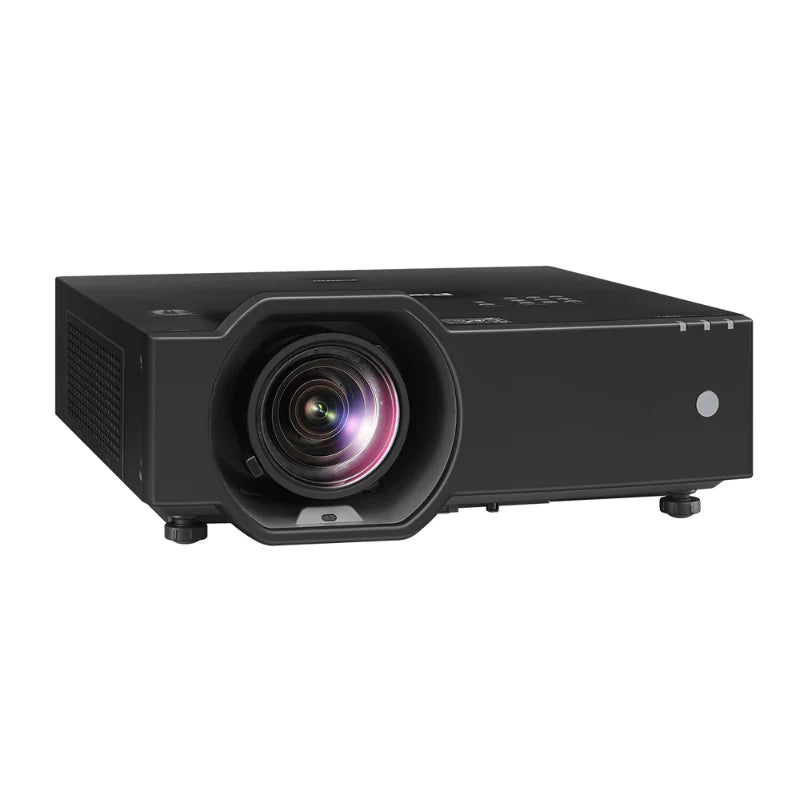

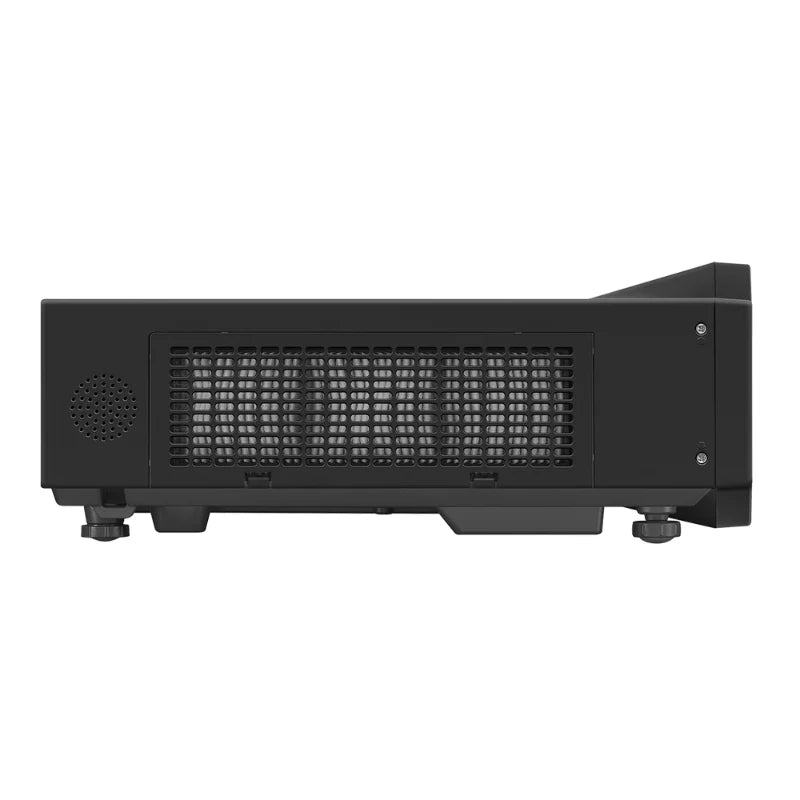

Panasonic PT-VMZ6STBU7 6200-Lumen WUXGA Short Throw Golf Simulator Projector

High-Brightness 6,200 Lumens Short Throw Projection

Produces vivid, crisp images and large 100-inch visuals from just 1.72 meters (5.6 ft) away, perfect for golf simulators and compact rooms.

WUXGA Resolution (1920 x 1200)

Ensures sharp detail, lifelike color, and smooth edges—ideal for immersive content, golf bays, and digital classrooms.

Dynamic 5,000,000:1 Contrast Ratio

Automatically optimizes light output for deep blacks, brilliant whites, and realistic scene depth.

Powered Focus & Flexible Short Throw Lens

Powered focus via remote control and a 0.797–1.01:1 throw ratio make it easy to achieve large images in tight spaces with no shadows.

Advanced Installation & Adjustment Suite

1.2x optical zoom, vertical (+50%) and horizontal (±20%) lens shift, curved screen correction, grid, and corner/6-point adjustment support precise alignment in any room.

Daylight View Basic & Vivid Green Mode

Adapts color and brightness to ambient light and enhances green tones for vivid golf simulation visuals.

Eco-Friendly, Low-Maintenance Design

Constructed with 56% recycled plastic, packed in recyclable cardboard, and designed for up to 20,000 hours of filter and light source operation.

Washable, Reusable ECO Filter

Micro-cut filter captures fine dust, is washable, and can be reused twice for reduced downtime.

Smart Power Management & Quick Start

Auto Power On, Image Detection, and Quick Startup features save energy and streamline operation.

4K Input & Robust Connectivity

Accepts 4K video via HDMI and DIGITAL LINK, with CEC command compatibility and optional wireless projection capability.

Centralized Control & Automation

Works with Multi Monitoring & Control Software for large AV fleets, and includes built-in scheduling for automatic daily operation.

Included with Your Purchase:

• Panasonic PT-VMZ6STBU7 6200-Lumen WUXGA Short Throw Golf Simulator Projector
• Power Cord
• Remote Control
• (2) 1.5V AA batteries

General Specifications:

• Projector Type: LCD projector
• Display Method: Transparent LCD panel (x 3, R/G/B)
• Selectable Aspect Ratio: 16:10, 16:9, 4:3, 21:9
• Panel Size: 0.64" (16:10 aspect ratio)
• Pixels: 2,304,000 (1920 x 1200) pixels x 3
• Light Source: Laser diodes
• Light Output: 6,200 lumens / 6,200 lumens (ANSI)
• Time Until Light Output Declines to 50%: 20,000 hours (Normal/Quiet), 24,000 hours (ECO)
• Resolution: WUXGA (1920 x 1200 pixels)
• Contrast Ratio: 5,000,000:1 (Full On/Full Off)
  (When Picture Mode is set to Dynamic and Dynamic Contrast is set to 1)
• Screen Size (Diagonal): 70" – 300" (1.77 – 7.62 m), 16:10 aspect ratio
• Center-to-Corner Zone Ratio: 85%

Projection Lens:

• Throw Ratio: 0.797 – 1.01:1
• Lens: 1.2x manual zoom, powered focus
• F-Number: 1.53 – 1.66
• Focal Length: 11.3 – 14.2 mm
• Digital Zoom Extender: Throw ratio 0.797 – 1.27:1 (corresponding value, when used with optical zoom)

Lens Shift:

• Vertical: +50% (from the origin point of the lens mounter)
• Horizontal: ±20% (from the origin point of the lens mounter)

Keystone Correction:

• Vertical: ±25%
• Horizontal: ±35%

Terminals:

• (2) HDMI 19-pin (HDCP, Deep Color, 4K/30p signal input, CEC supported)
• (1) Computer In: D-sub 15-pin (female) (RGB/YPBPR/YCBCR)
• (1) Audio In: M3 stereo mini-jack
• (1) Audio Out: M3 stereo mini-jack
• (1) Serial In: D-sub 9-pin (female, RS-232C compliant)
• (1) Digital Link/LAN: RJ-45 (HDBaseT compliant, video/network/serial control, 100Base-TX, PJLink [Class 2], HDCP, Deep Color, 4K/30p signal input)
• (1) LAN: RJ-45 (network control, 10Base-T, 100Base-TX, PJLink [Class 2])
• (1) USB Type-A: Memory Viewer, optional wireless module, DC 5V (max 2A) power supply

Network and Control:

• Protocol Versions: IPv4, IPv6

Power and Consumption:

• Power Supply: AC 100V – 240V, 50/60 Hz
• Maximum Power Consumption: 320W (3.3A) (325VA)
  (305W at 200–240V)
• On-Mode Power Consumption:
  Normal: 280W (100–240V), 270W (200–240V)
  ECO: 215W (100–240V), 205W (200–240V)
  Quiet 1: 245W (100–240V), 235W (200–240V)
  Quiet 2: 210W (100–240V), 200W (200–240V)

Audio:

• Built-in Speaker: 10W monaural

Physical:

• Cabinet Materials: Molded plastic
• Filter: Included (estimated maintenance: approx. 20,000 hours)
• Operation Noise: 35dB (Normal/ECO), 30dB (Quiet 1), 25dB (Quiet 2)
• Dimensions (W x H x D):
  Excluding feet: 16.3"W x 4.7"H x 16.7"D (414 x 120 x 424 mm)
  Including feet: 16.3"W x 6.6"H x 16.7"D (414 x 167 x 424 mm)
• Weight: Approx. 18.3 lbs (8.3 kg)

Operating Environment:

• Operating Temperature: 32˚F to 113˚F (0˚C to 45˚C)
• Operating Humidity: 20% – 80% (no condensation)

Applicable Software:

• Multi Monitoring & Control Software
• Projector Network Setup Software
• Presenter Light Software for Windows
• Wireless Projector App for iOS/Android
