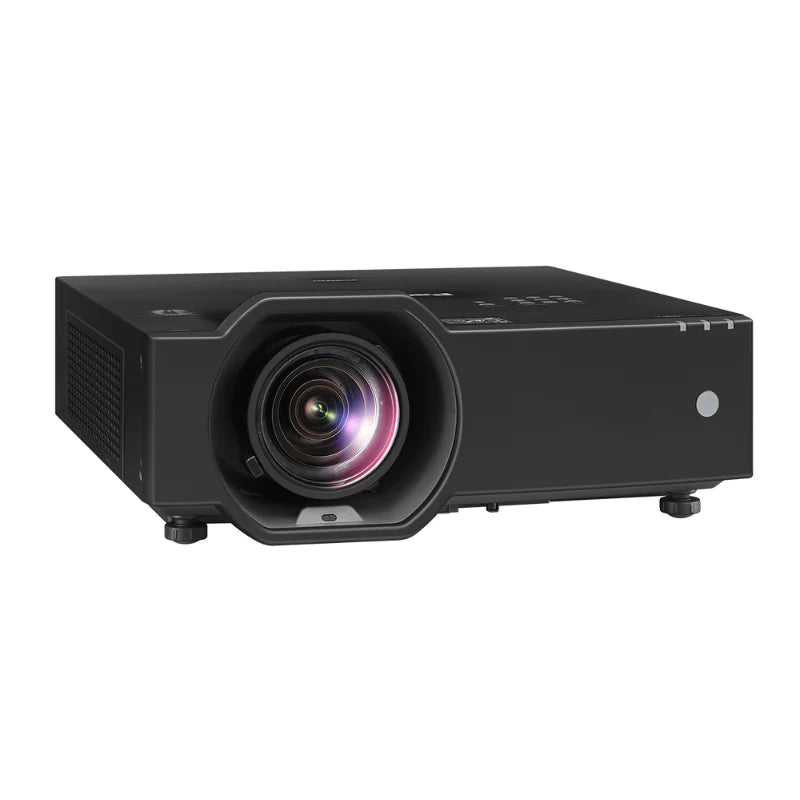

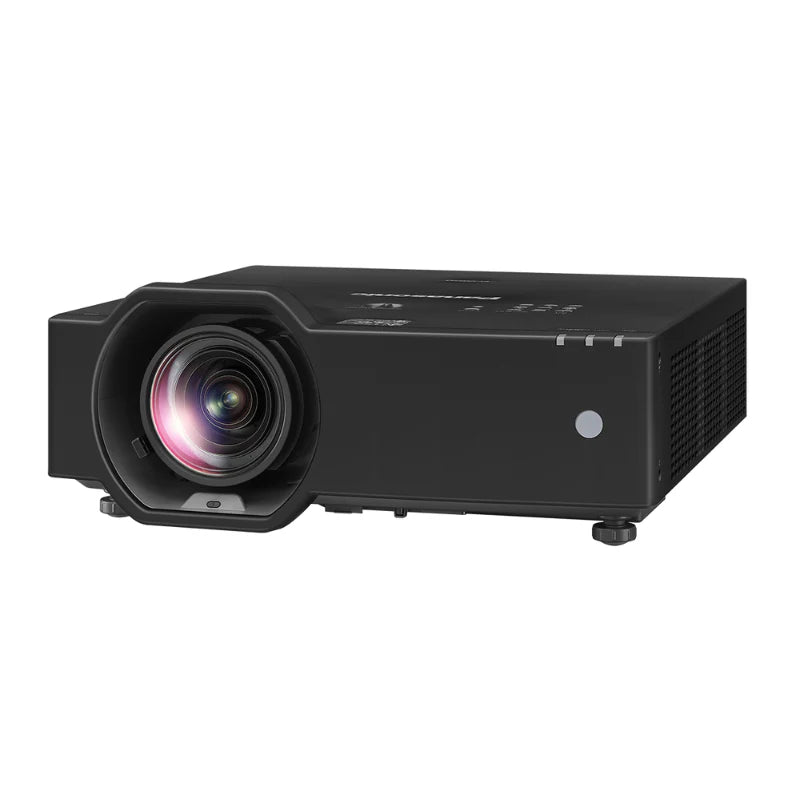

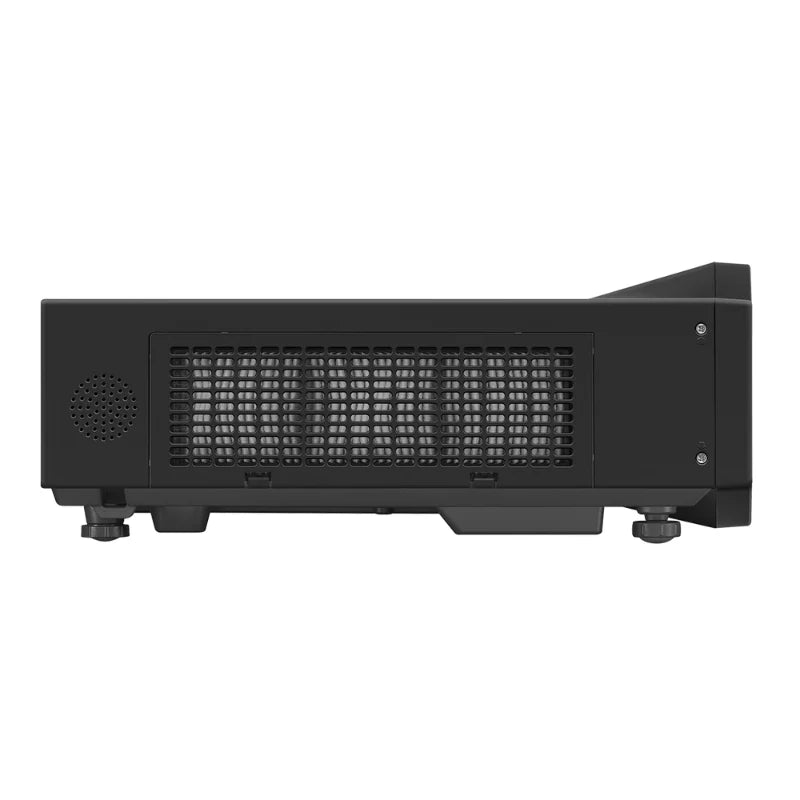

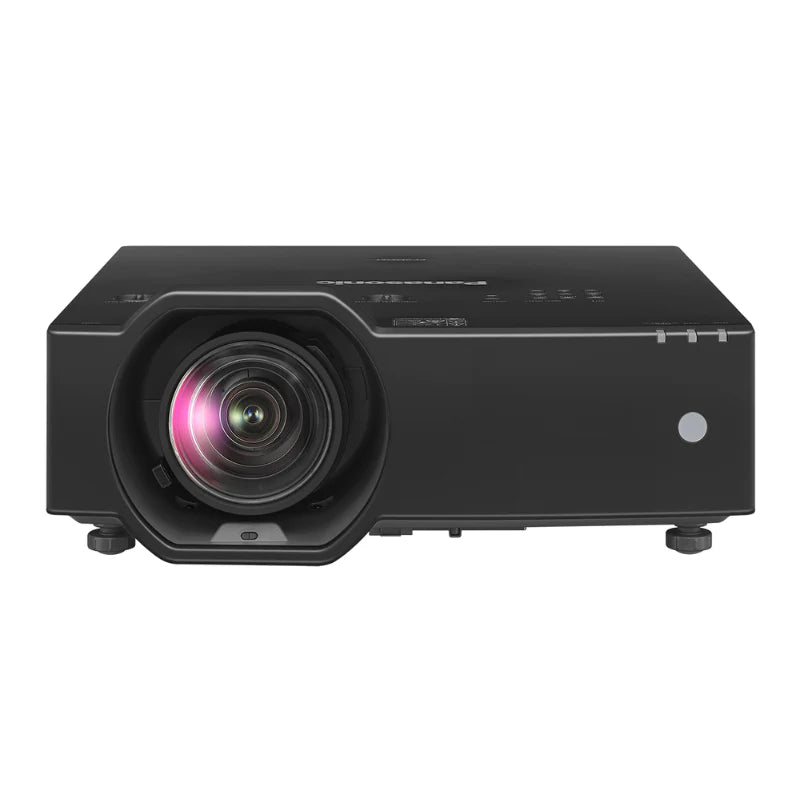

Panasonic PT-VMZ7STBU7 7000-Lumen WUXGA Short Throw Golf Simulator Projector

Brilliant 7,000 Lumens Short Throw Projection

Produces clear, vibrant, and shadow-free images in bright rooms, projecting a 100-inch screen from only 1.72 meters (5.6 ft) away.

WUXGA Resolution (1920 x 1200)

Delivers sharp, detailed visuals and crisp text, ensuring immersive content for golf simulators and presentations.

Dynamic 5,000,000:1 Contrast Ratio

Enhances color depth and realism, automatically adjusting light output for stunning visuals.

Powered Focus & Flexible Short Throw Lens

Quick, remote focus adjustment and a 0.797–1.01:1 throw ratio allow large images in compact spaces without shadows.

Easy Installation & Advanced Adjustment Suite

1.2x optical zoom, wide vertical (+50%) and horizontal (±20%) lens shift, and features like curved screen correction, grid, and 6-point/corner adjustment simplify alignment.

Daylight View Basic & Vivid Green Mode

Optimizes color and brightness to match room lighting, while Vivid Green Mode enhances sports and golf simulation visuals.

Eco-Friendly Construction

Body uses 56% recycled plastic and ships with recyclable cardboard, reducing the projector’s environmental footprint.

Maintenance-Free Laser Light Source

Up to 20,000 hours of operation without lamp changes, reducing downtime and operating costs.

Washable, Reusable ECO Filter

Electrostatic filter is washable and reusable up to two times for extended, low-maintenance reliability.

Smart Power Management

Auto Power On, Image Detection, and Quick Start features help reduce energy consumption and support daily automation.

4K Input Support & Versatile Connectivity

Accepts 4K input via HDMI and DIGITAL LINK, with CEC command compatibility and optional wireless projection module.

Centralized Multi-Device Management

Compatible with Multi Monitoring & Control Software for managing up to 2,048 devices across large AV networks.

Included with Your Purchase:

• Panasonic PT-VMZ7STBU7 7000-Lumen WUXGA Short Throw Golf Simulator Projector
• Power Cord
• Remote Control
• (2) 1.5V AA batteries

General Specifications:

• Projector Type: LCD projector
• Display Method: Transparent LCD panel (x 3, R/G/B)
• Selectable Aspect Ratio: 16:10, 16:9, 4:3, 21:9
• Panel Size: 0.64" (16:10 aspect ratio)
• Pixels: 2,304,000 (1920 x 1200) pixels x 3
• Light Source: Laser diodes
• Light Output: 7,000 lumens / 7,000 lumens (ANSI) or 6,200 lumens / 6,200 lumens (ANSI)
• Time Until Light Output Declines to 50%: 20,000 hours (Normal/Quiet), 24,000 hours (ECO)
• Resolution: WUXGA (1920 x 1200 pixels)
• Contrast Ratio: 5,000,000:1 (Full On/Full Off)
  (When Picture Mode is set to Dynamic and Dynamic Contrast is set to 1)
• Screen Size (Diagonal): 70" – 300" (1.77 – 7.62 m), 16:10 aspect ratio
• Center-to-Corner Zone Ratio: 85%

Projection Lens:

• Throw Ratio: 0.797 – 1.01:1
• Lens: 1.2x manual zoom, powered focus
• F-Number: 1.53 – 1.66
• Focal Length: 11.3 – 14.2 mm
• Digital Zoom Extender: Throw ratio 0.797 – 1.27:1 (corresponding value, when used with optical zoom)

Lens Shift:

• Vertical: +50% (from the origin point of the lens mounter)
• Horizontal: ±20% (from the origin point of the lens mounter)

Keystone Correction:

• Vertical: ±25%
• Horizontal: ±35%

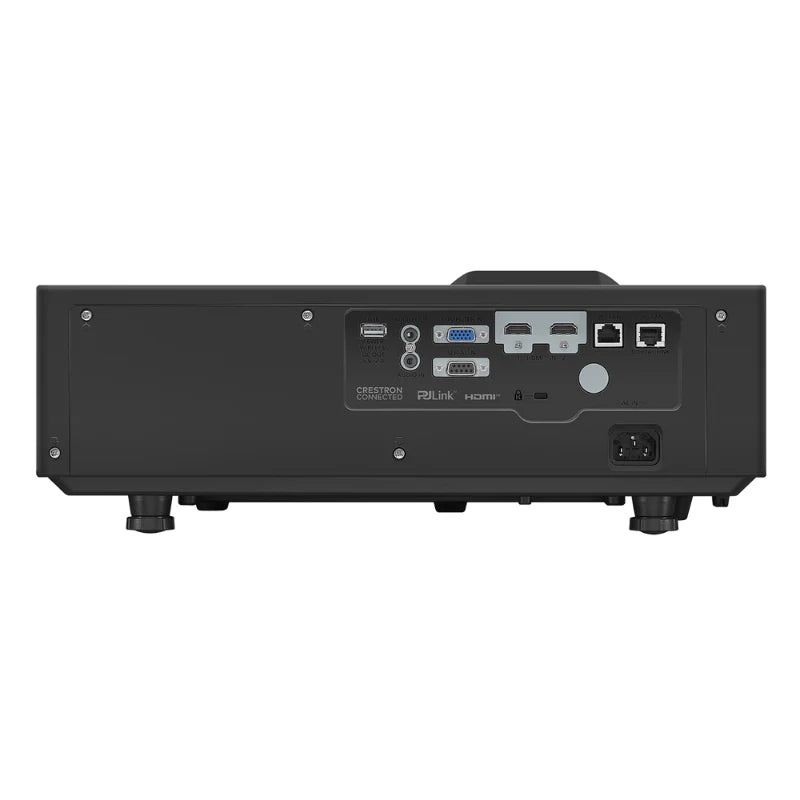

Terminals:

• (2) HDMI 19-pin (HDCP, Deep Color, 4K/30p signal input, CEC supported)
• (1) Computer In: D-sub 15-pin (female) (RGB/YPBPR/YCBCR)
• (1) Audio In: M3 stereo mini-jack
• (1) Audio Out: M3 stereo mini-jack
• (1) Serial In: D-sub 9-pin (female, RS-232C compliant)
• (1) Digital Link/LAN: RJ-45 (HDBaseT compliant, video/network/serial control, 100Base-TX, PJLink [Class 2], HDCP, Deep Color, 4K/30p signal input)
• (1) LAN: RJ-45 (network control, 10Base-T, 100Base-TX, PJLink [Class 2])
• (1) USB Type-A: Memory Viewer, optional wireless module, DC 5V (max 2A) power supply

Network and Control:

• Protocol Versions: IPv4, IPv6

Power and Consumption:

• Power Supply: AC 100V – 240V, 50/60 Hz
• Maximum Power Consumption: 345W (3.6A) (350VA)
  (335W at 200–240V)
• On-Mode Power Consumption:
  Normal: 310W (100–240V), 295W (200–240V)
  ECO: 235W (100–240V), 225W (200–240V)
  Quiet 1: 270W (100–240V), 260W (200–240V)
  Quiet 2: 230W (100–240V), 220W (200–240V)

Audio:

• Built-in Speaker: 10W monaural

Physical:

• Cabinet Materials: Molded plastic
• Filter: Included (estimated maintenance: approx. 20,000 hours)
• Operation Noise: 37dB (Normal/ECO), 32dB (Quiet 1), 27dB (Quiet 2)
• Dimensions (W x H x D):
  Excluding feet: 16.3"W x 4.7"H x 16.7"D (414 x 120 x 424 mm)
  Including feet: 16.3"W x 6.6"H x 16.7"D (414 x 167 x 424 mm)
• Weight: Approx. 18.5 lbs (8.4 kg)

Operating Environment:

• Operating Temperature: 32˚F to 113˚F (0˚C to 45˚C)
• Operating Humidity: 20% – 80% (no condensation)

Applicable Software:

• Multi Monitoring & Control Software
• Projector Network Setup Software
• Presenter Light Software for Windows
• Wireless Projector App for iOS/Android
